Used CAT XQ2000 Generator Set

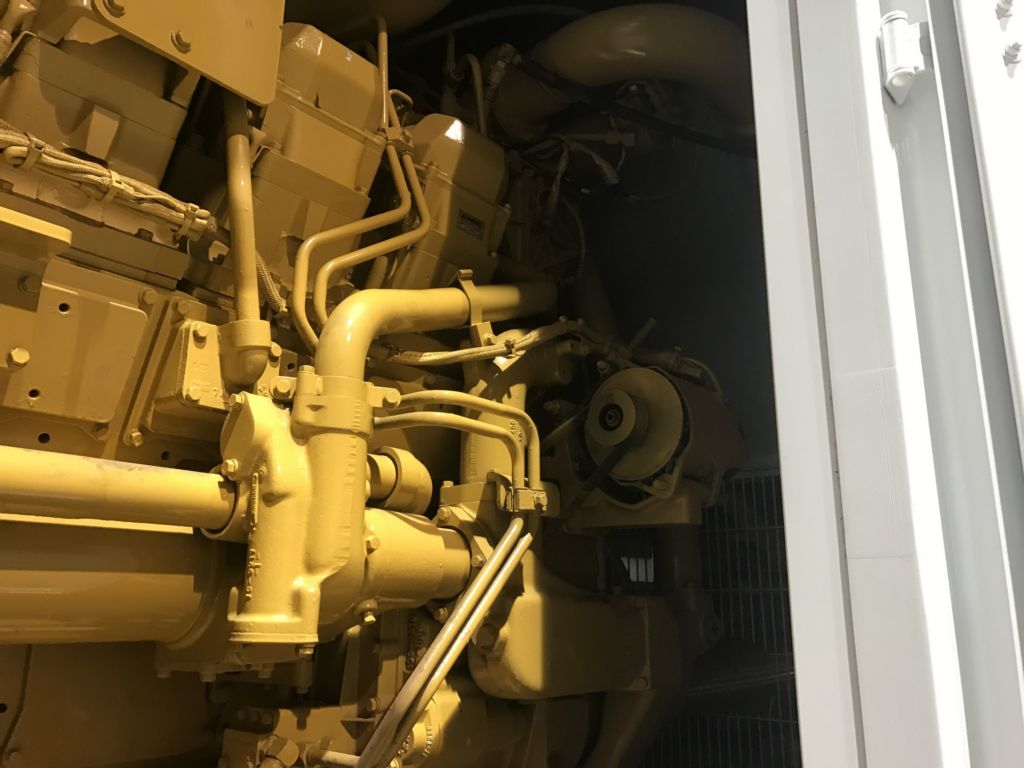

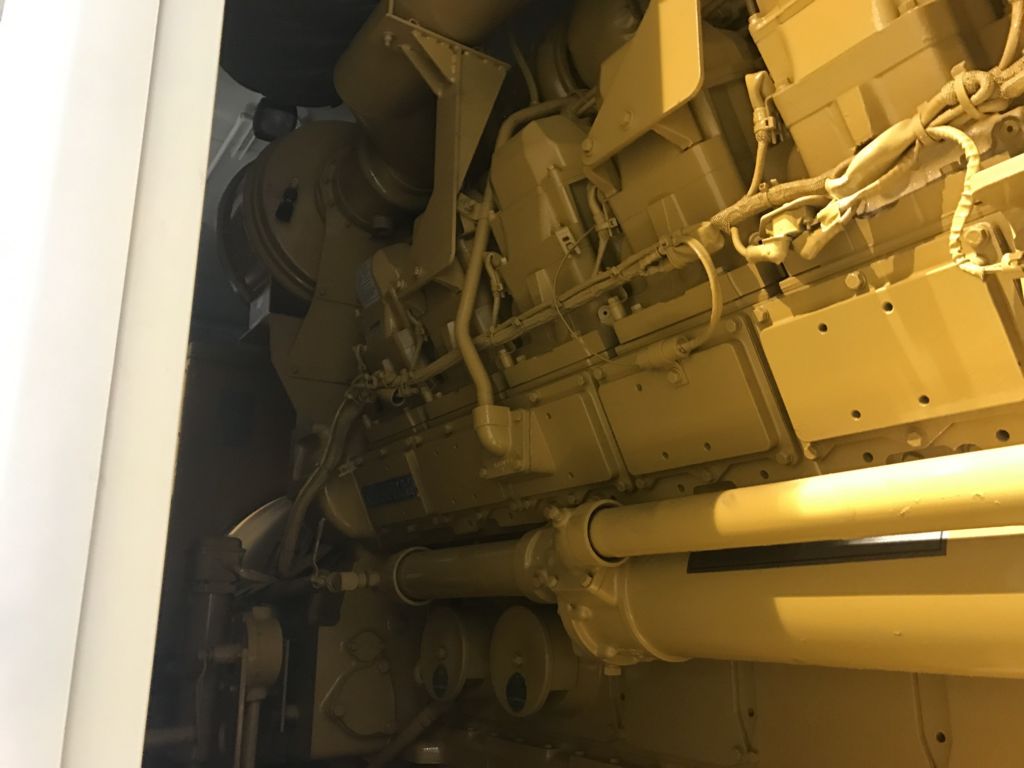

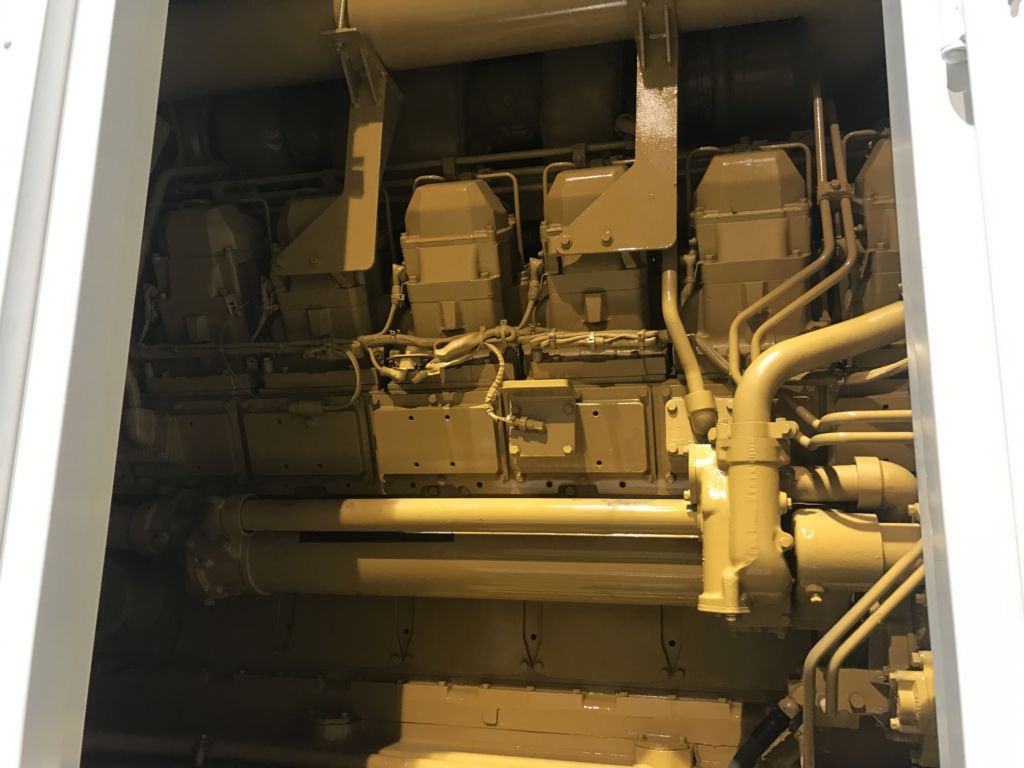

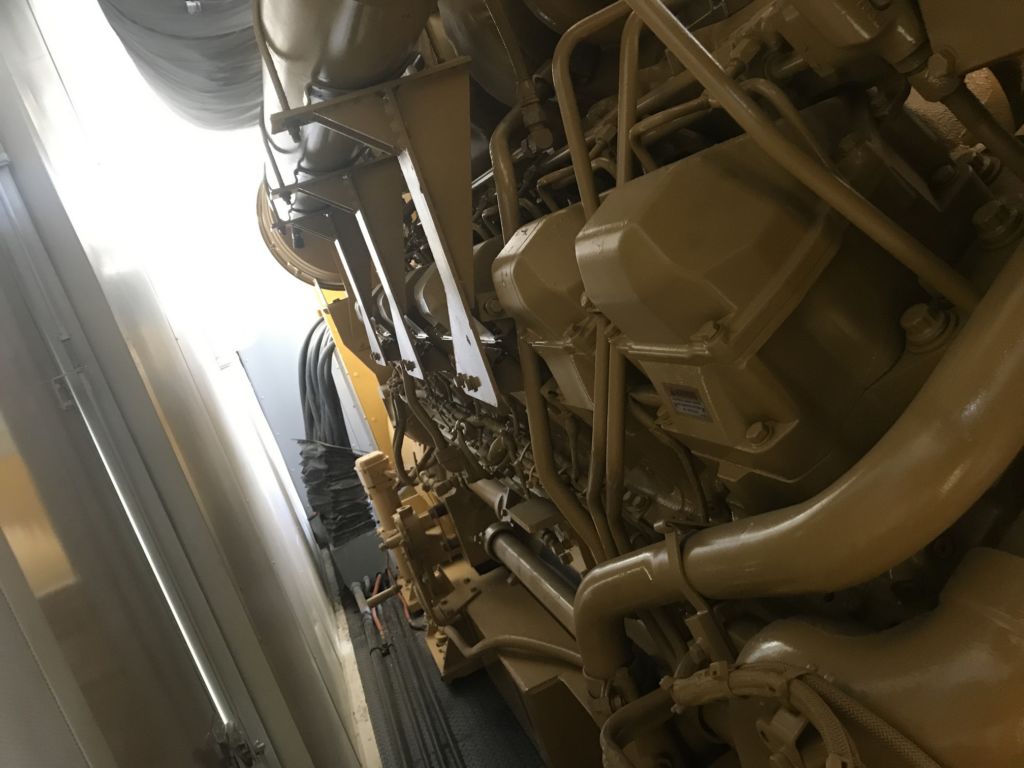

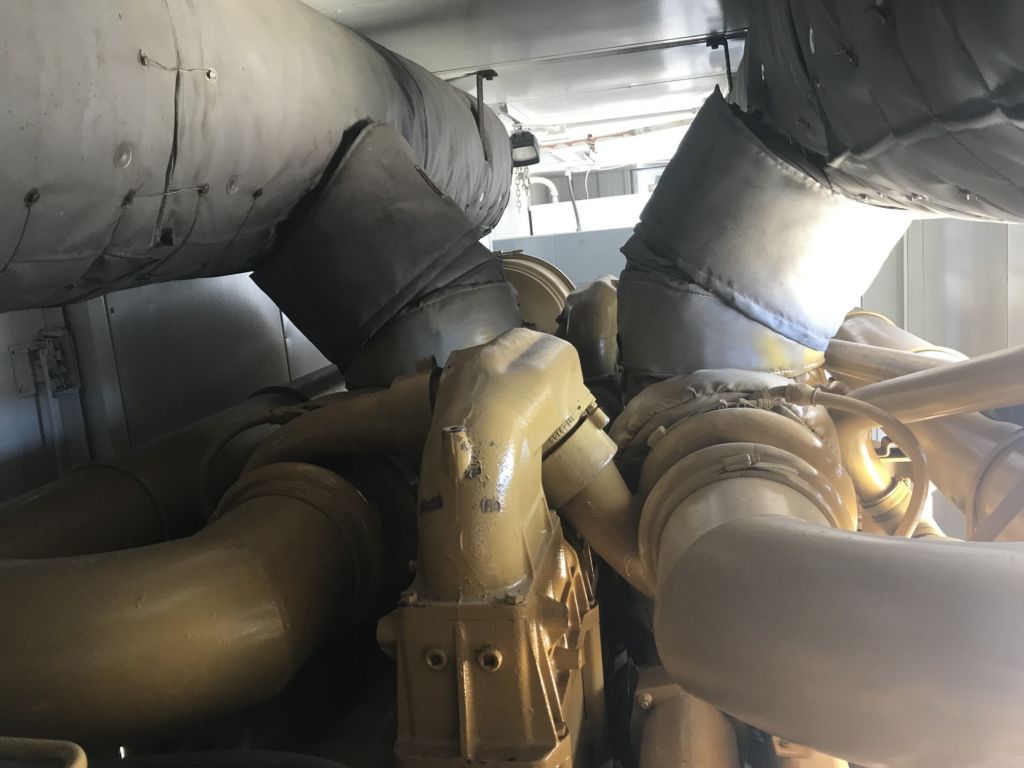

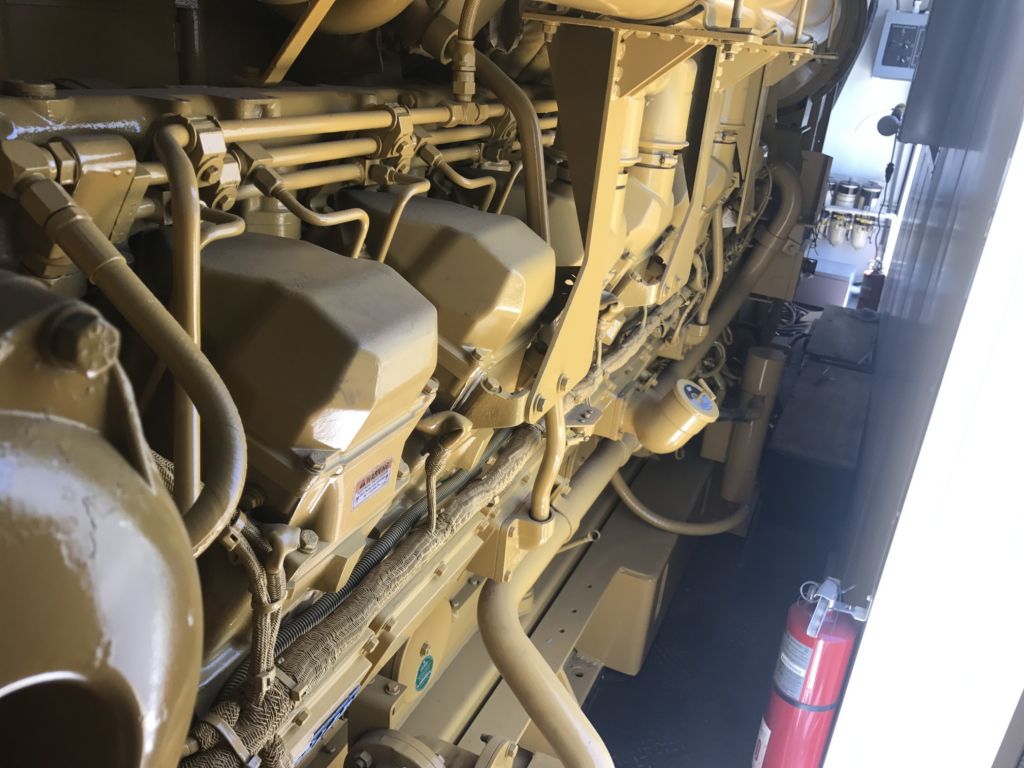

Engine Details
Engine Manufacturer
:
Caterpillar
Engine Model
:
3516B DITA SCAC
Engine S/N
:
7RN01418
Arrangement/CPL #
:
1736942
Test Spec
:
0K2142
Performance Spec
:
DM4501
Engine HP
:
2628
Engine RPM
:
1800
Governor
:
ADEM
Starter
:
Electric
Cooling Method
:

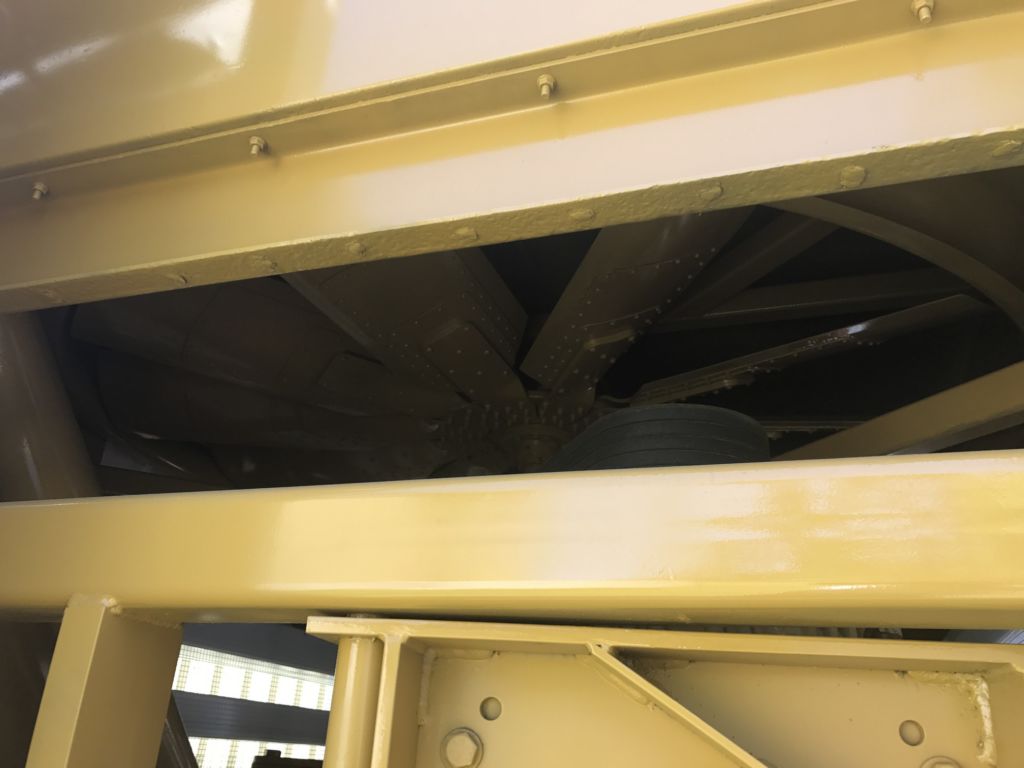

Remote Radiator

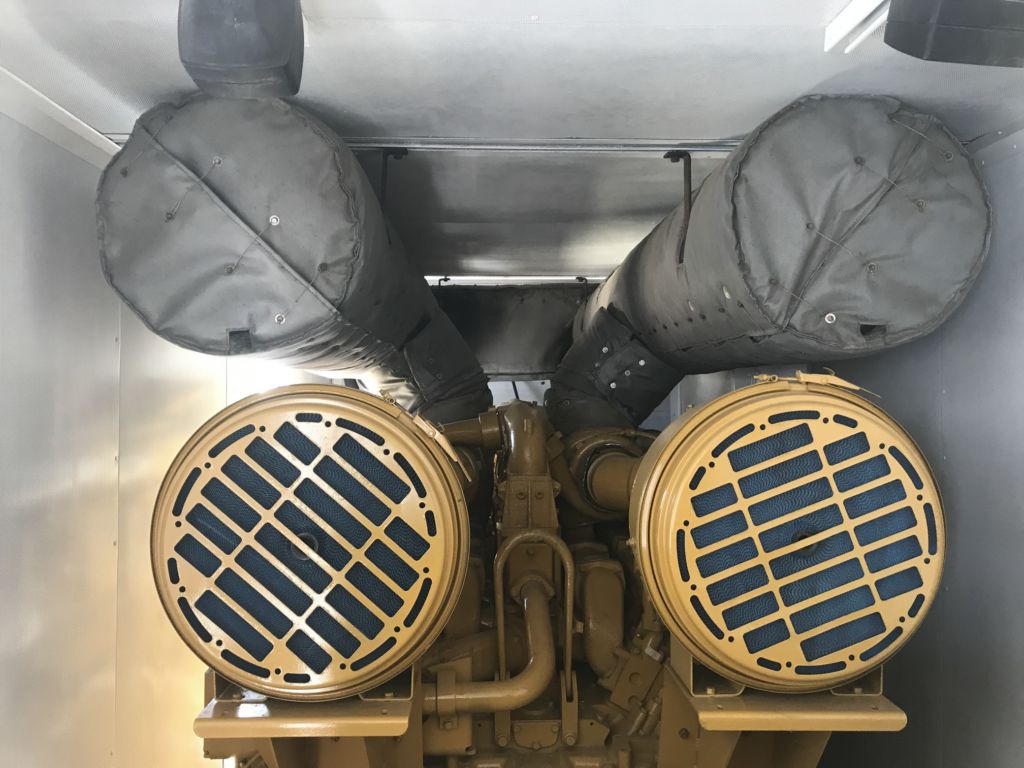

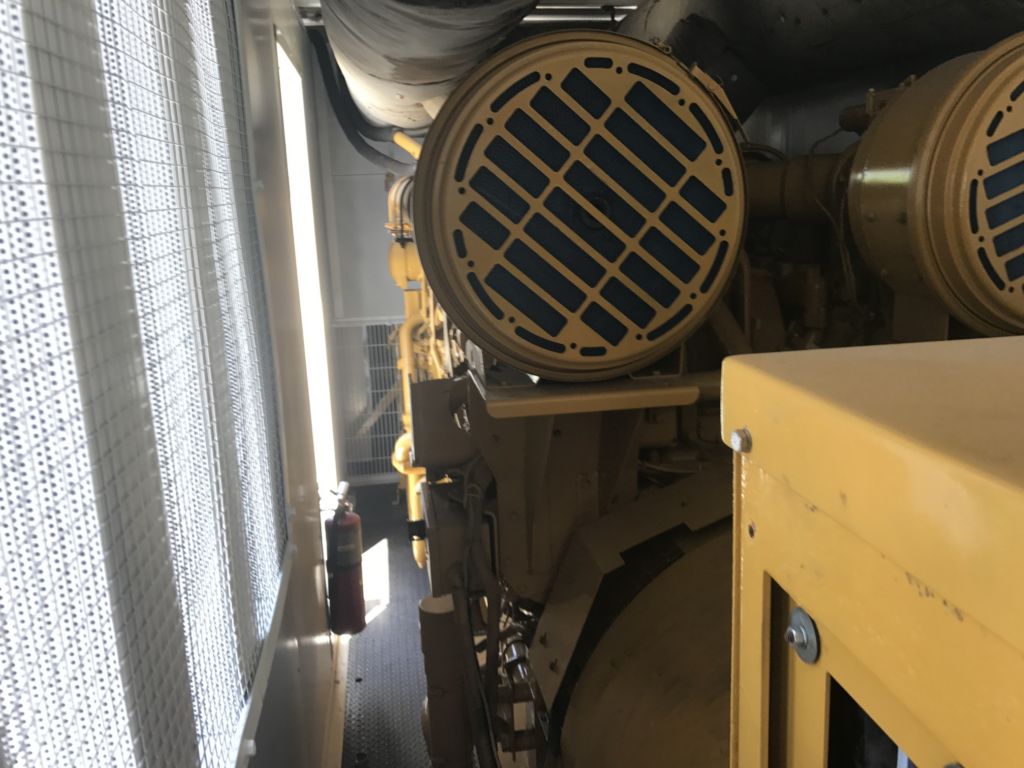

Air Cleaner
:
Heavy Duty
Emissions Rating
:
Tier 1
Flywheel Size
:
SAE 00
Accessories
Jacket Water Heater
Explosion Relief Valve

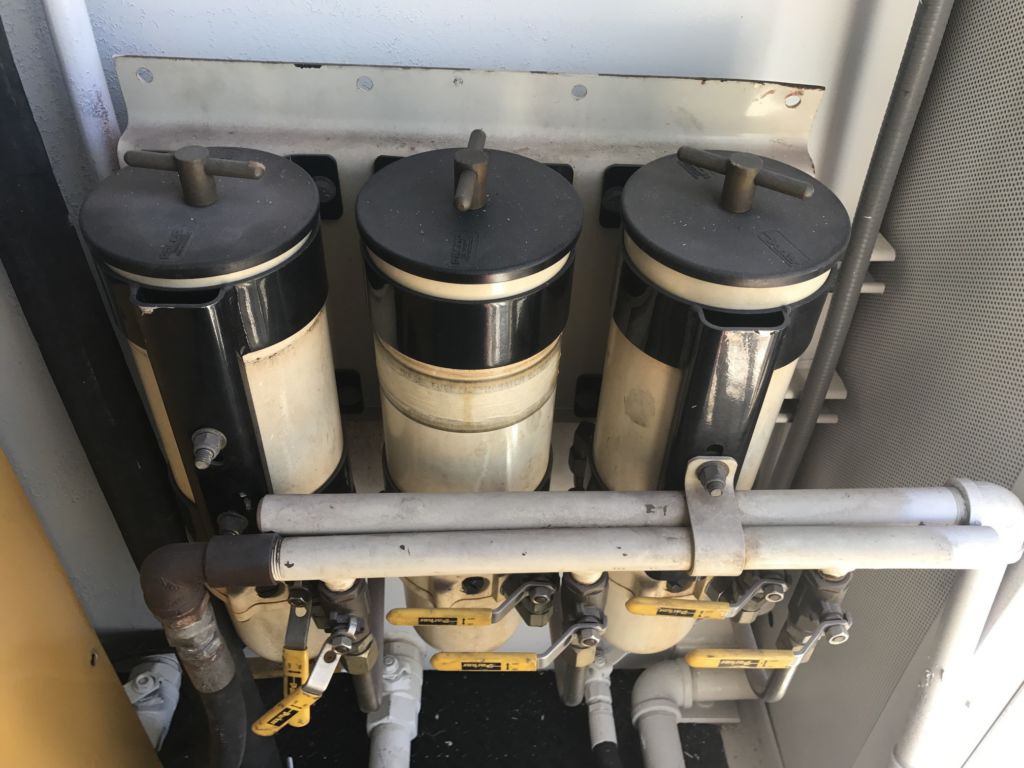

Fuel/Water Separator
Fuel Cooler
Battery Charger
Battery Rack
Battery Cables
Charging Alternator
Emergency Stop
Coolant Level Sensor
Air Inlet Shutoff Solenoid
Exhaust Silencer (Mounted)
Generator End Details
Generator End Manufacturer
:
Caterpillar
Generator End Model
:
SR4B 825 Frame
CAT Arrangement
:
1441952
kW Rating
:
2000
kVA Rating
:
2500
Rating Type
:
Standby
Voltage
:
480/277
Power Factor
:
0.8
Frequency
:
60Hz
Phase
:
3 Phase
Bearings
:
Single
Excitation Type
:
Permanent Magnet Excitation
Windings
:
Form Wound
Voltage Regulator Model
:
CAT DVR
Accessories
Space Heaters
Generator Set Details
Package Manufacturer
:
Caterpillar
Package S/N
:
7RN01418
Package Model
:
XQ2000
Voltage
:
480/277

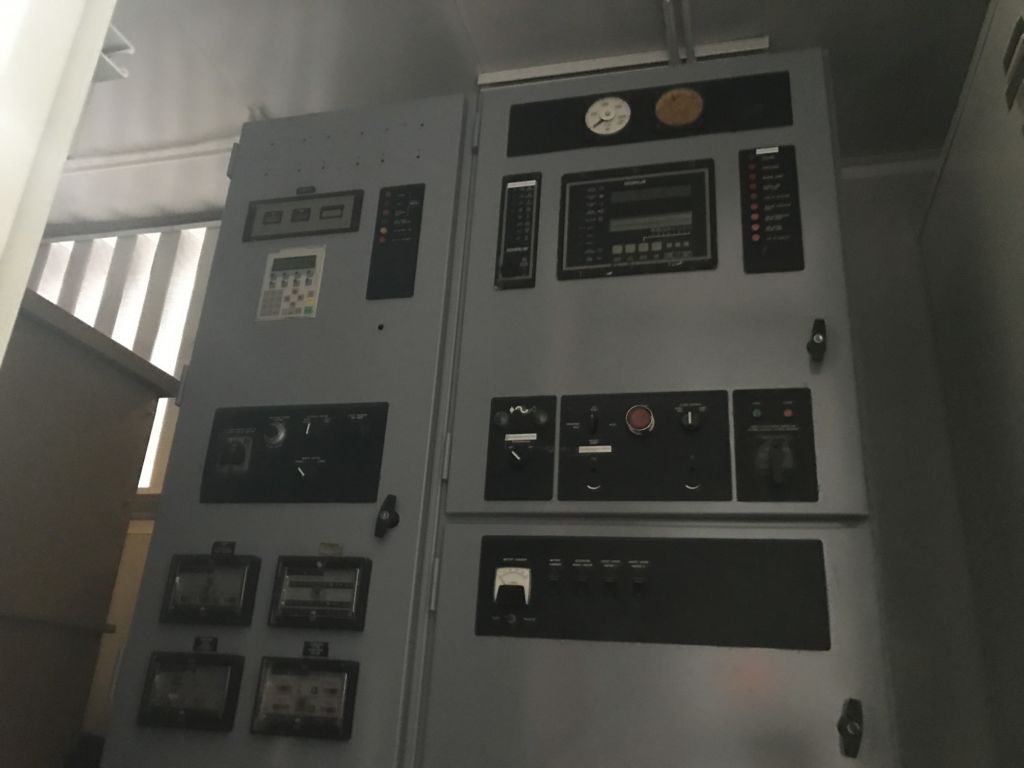

Control Panel
:
EMCP 2+
Circuit Breaker Size (Amps)
:
3000A

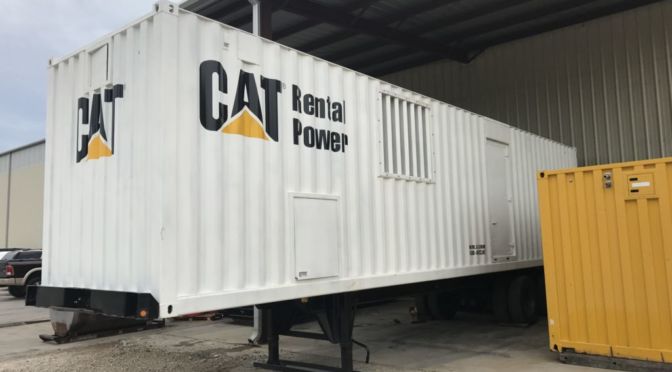

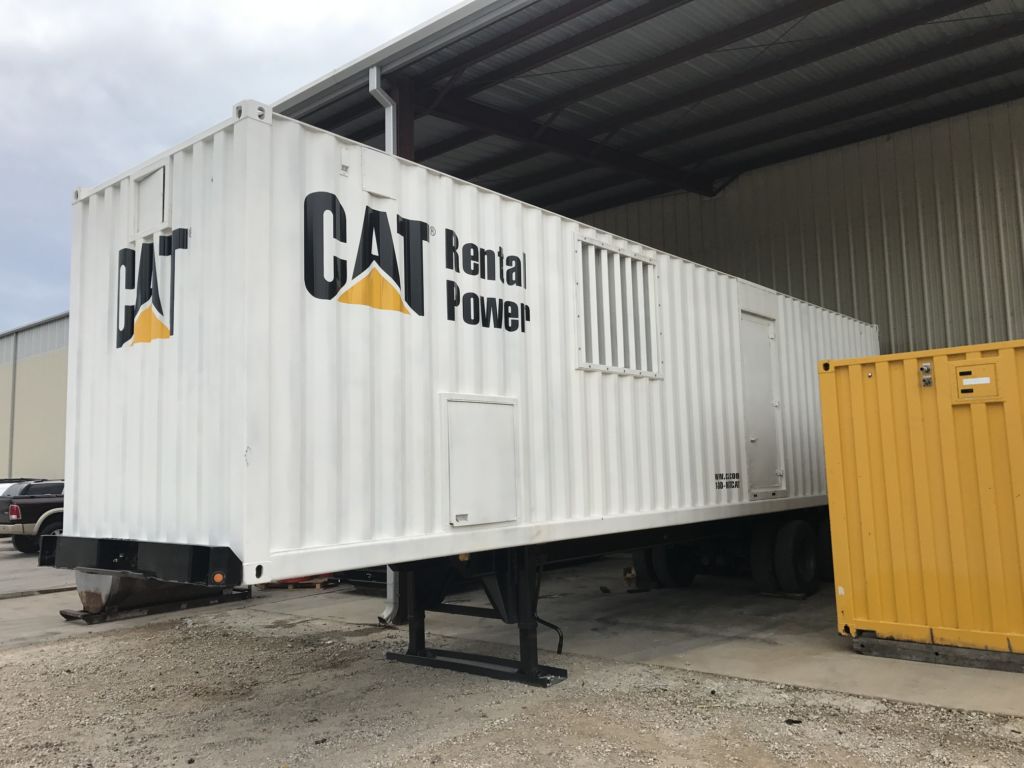

Enclosure
:

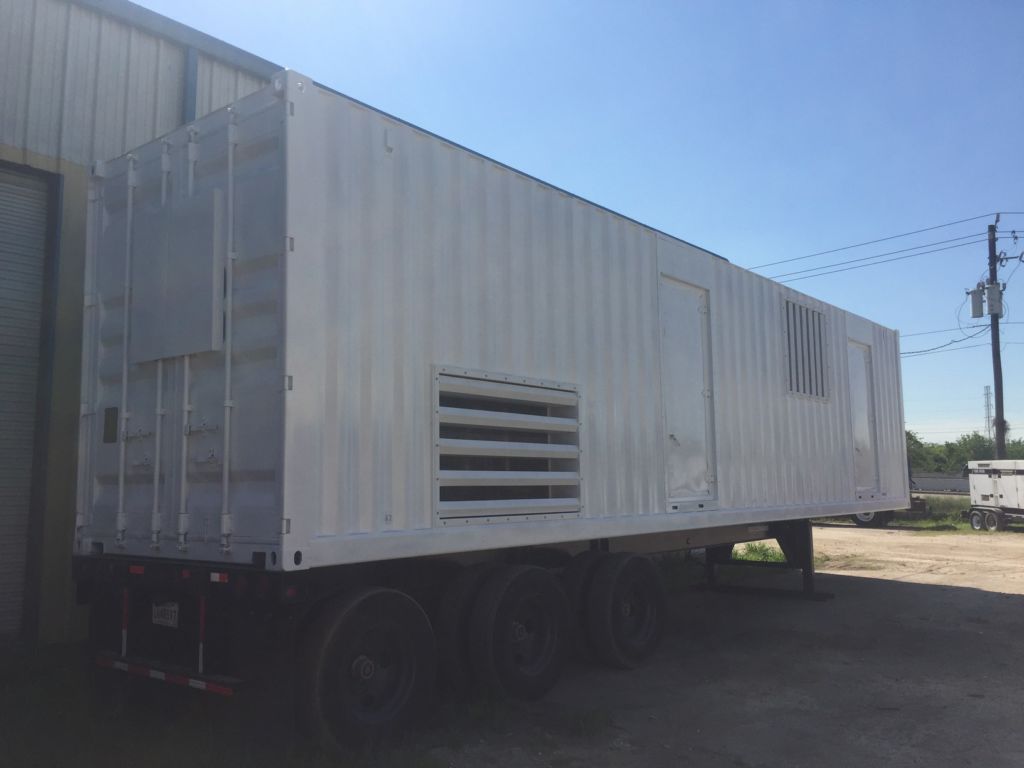

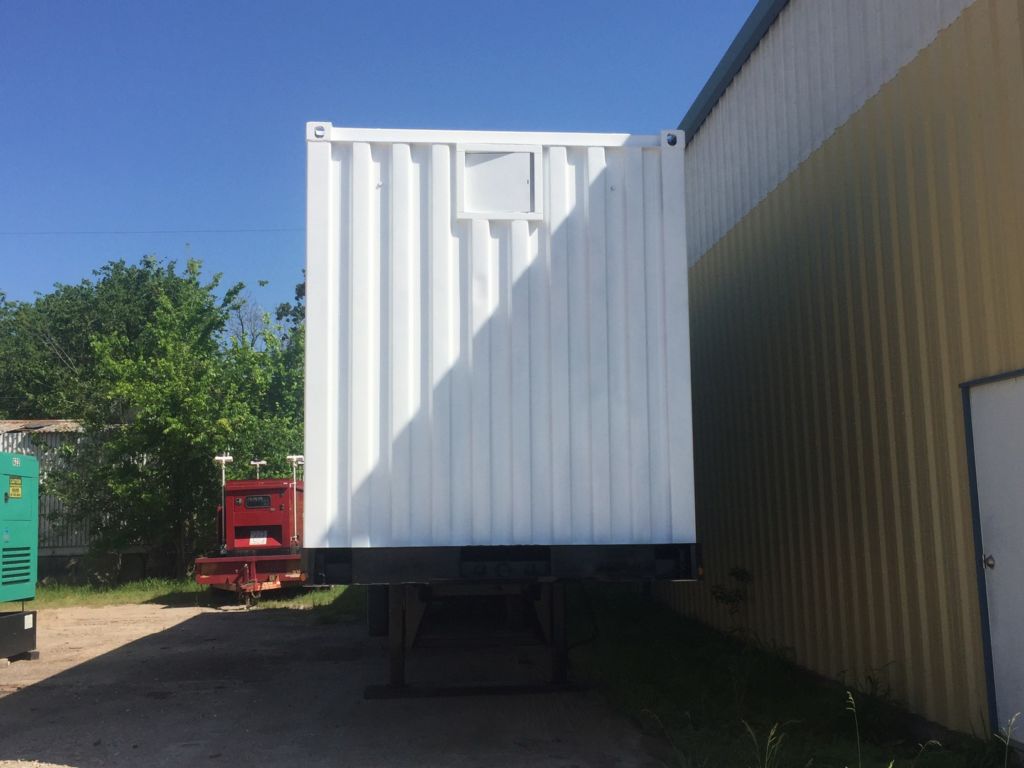

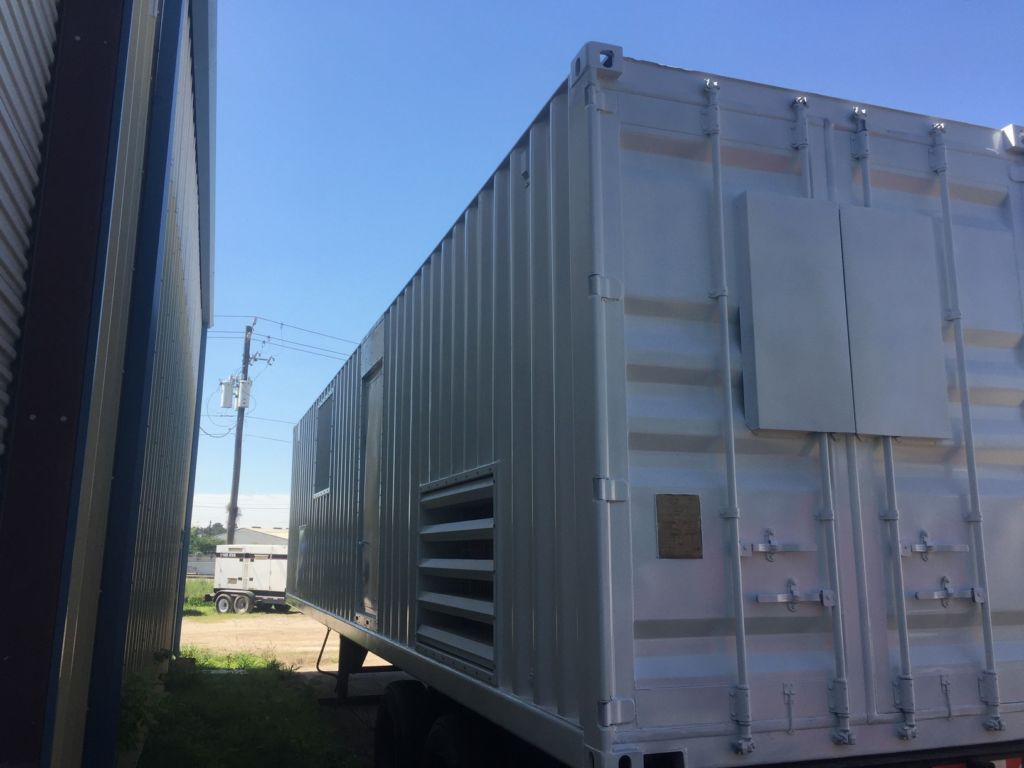

40' Container
Enclosure Type
:
Sound Attenuated Enclosed
Fuel Tank Option
:
Remote Fuel Tank - Dual Wall
Fuel Tank Size (Gallons)
:
1250
Accessories
Distribution Panel

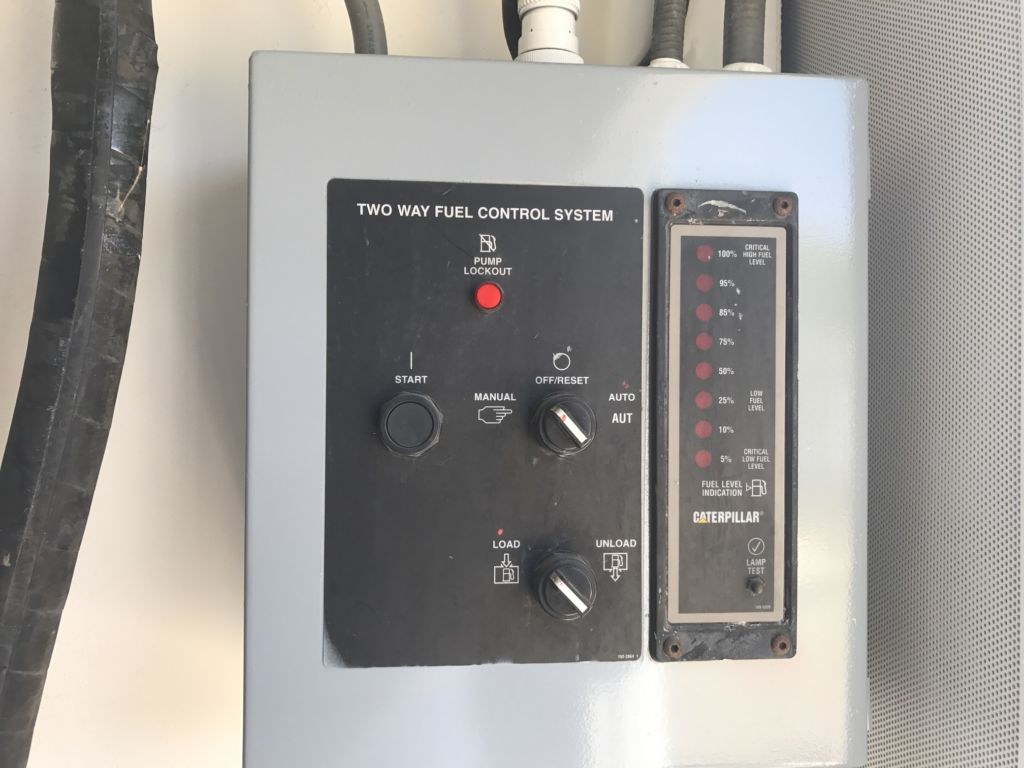

Fuel Transfer Pump
Paralleling Controls
Electrically Operated Breaker
Shunt Trip
Digital Voltage Regulator
UL 2200 Listed

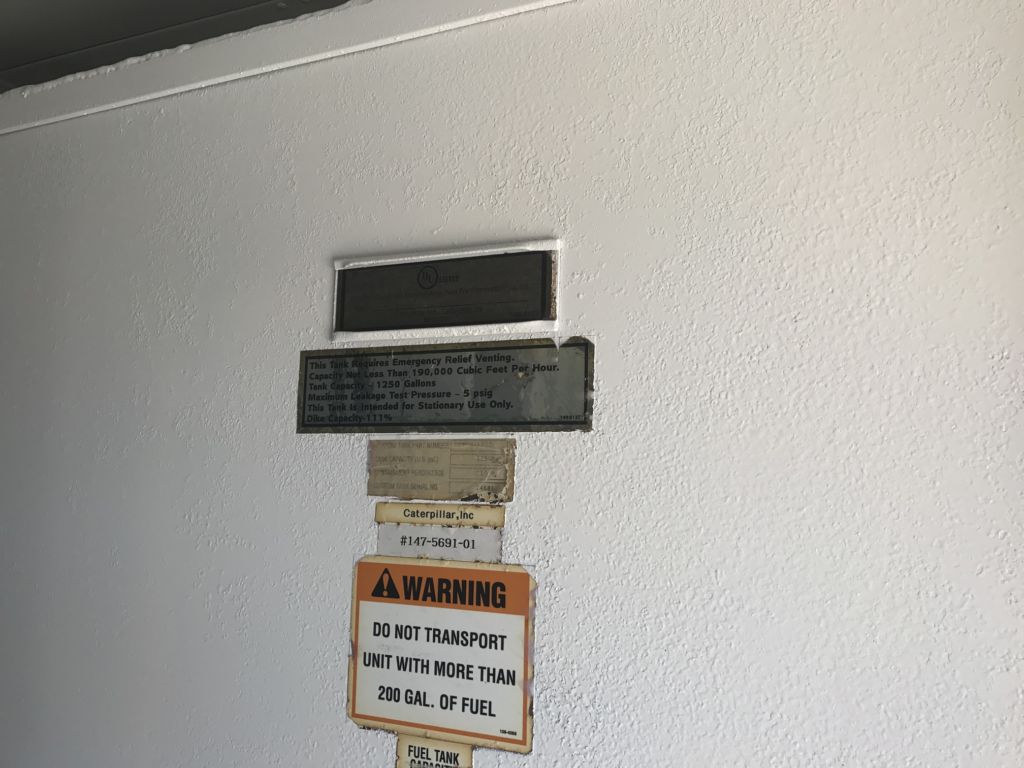

UL 142 Fuel Tank
Additional Information
Fully Refurbished Container
Dimensions and Weight
Dimensions (LxWxH)
:
480 x 96 x 168
Weight (Lbs)
:
93,000
