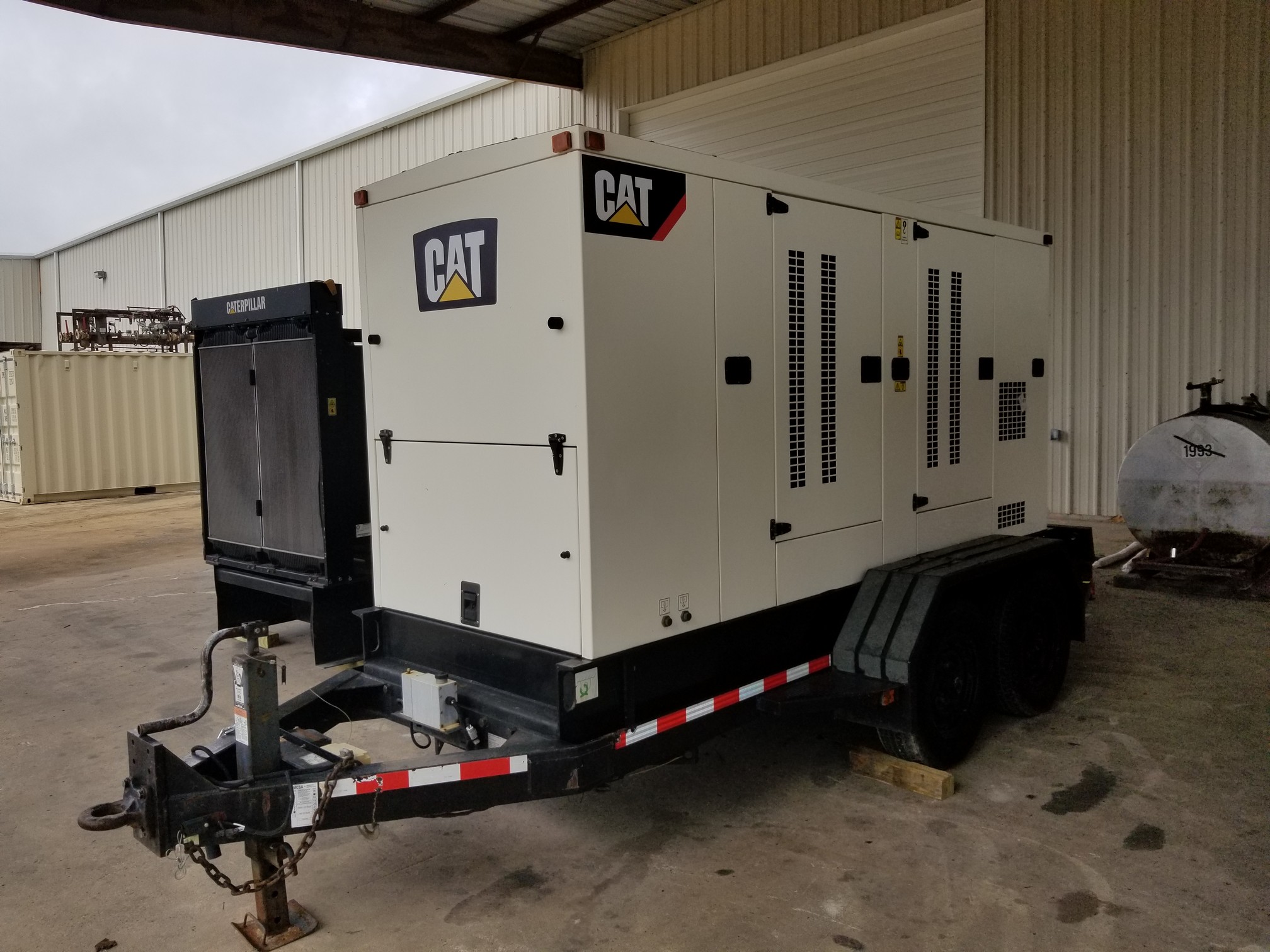

187.5 KVA APS150 Diesel Generator Set
MAXIMUM RATING
150 ekW
MINIMUM RATING
150 ekW
EMISSIONS/FUEL STRATEGY
EPA Tier 3 Certified at 60Hz applications
150 ekW
MINIMUM RATING
150 ekW
EMISSIONS/FUEL STRATEGY
EPA Tier 3 Certified at 60Hz applications
| DOWNLOADS: |  Spec-Sheet-CAT-APS150 |
OVERVIEW
150 KW Portable Generator
Providing reliable power of 150 ekW at 60 Hz, the APS150 portable generator is a mobile power solution well-suited to an array of field operations. With a fully weatherproof enclosure, this model offers a durable design coupled with internal exhaust silencers to reduce noise. The APS150 portable generator is EPA Tier 3 Certified.
FEATURES AT A GLANCE
| Sound attenuated design for low noise operation |
| Rugged, durable design for reliability in the field |
| Designed to match the performance of diesel engines |
| Spill containment for oil and coolant |
Your one-stop-shop for power equipment solutions.
When you work with React Power Solutions, we have the unique ability to offer custom solutions to the challenges you face on your worksite. Based in Houston, TX, we have everything you need to thrive in challenging work sites.
GENERATOR SET SPECIFICATIONS
| Minimum Rating | 150 ekW |
| Maximum Rating | 150 ekW |
| Duty Cycle | Standby |
ENGINE SPECIFICATIONS
| Engine Model | PERKINS 1106D-E66TA, 4 stroke-cycle water-cooled diesel |
| Bore | 4.13 in |
| Stroke | 5 in |
| Displacement | 403 in³ |
| Compression Ratio | 16.2:1 |
| Aspiration | Turbocharged AA charge cooled |
| Engine control | A4E2 |
| Fuel System | Primary fuel filter/water separator, UL142 dual wall fuel tank, 300 gal (1135 L) |
DIMENSIONS
| Length – Maximum | 213 in |
| Width – Maximum | 84 in |
| Height – Maximum | 109 in |
CAT APS150 Diesel Generator
To get more information on the CAT APS150 Diesel Generator, please send us a quick message and one of our specialists will contact you right away.
