Used CAT SR4B Generator End

Stock ID
1219
Price
Call
Rating
1000 kW
Quantity
1
Condition
Good Used
Category
Generators
Sub-Category
Generator Ends

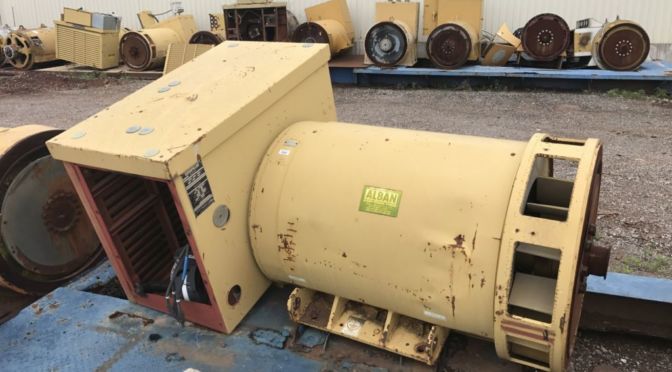

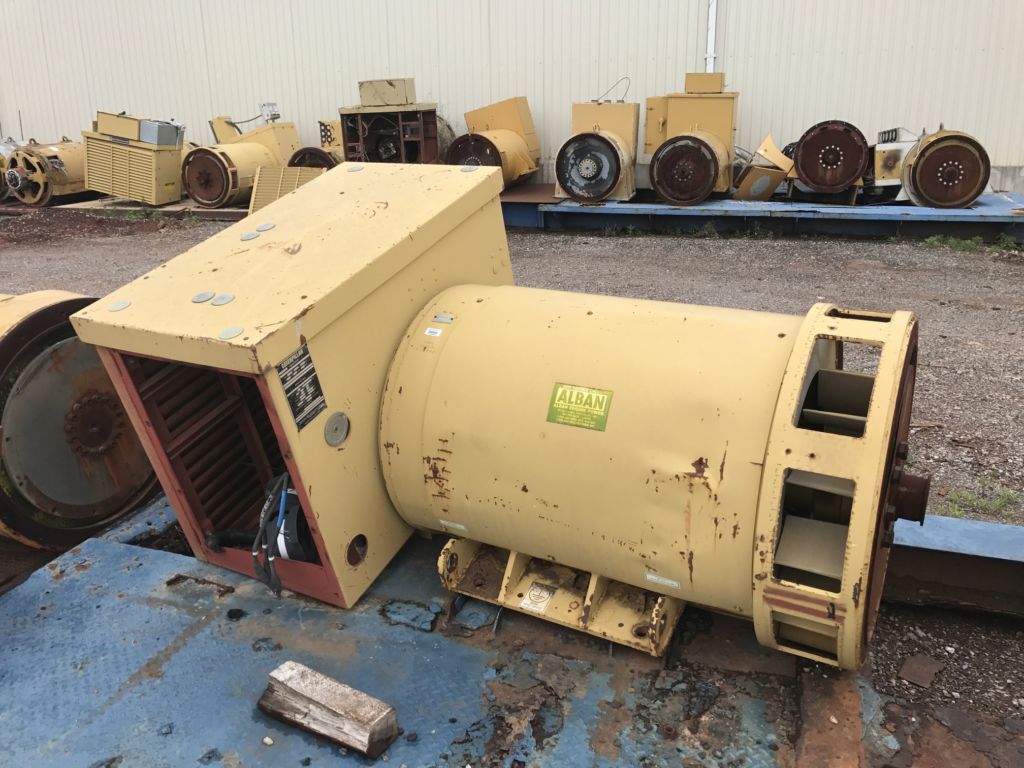

Meggar Tested; CAT SR4B 685 Frame Generator End; 1000kW Standby; 4160V; 3 Phase; 60Hz; 1800RPM; SAE 00 Flywheel Housing; In Stock & Ready to Ship

Generator End Manufacturer
:
Caterpillar
Generator End Model
:
SR4B 685 Frame

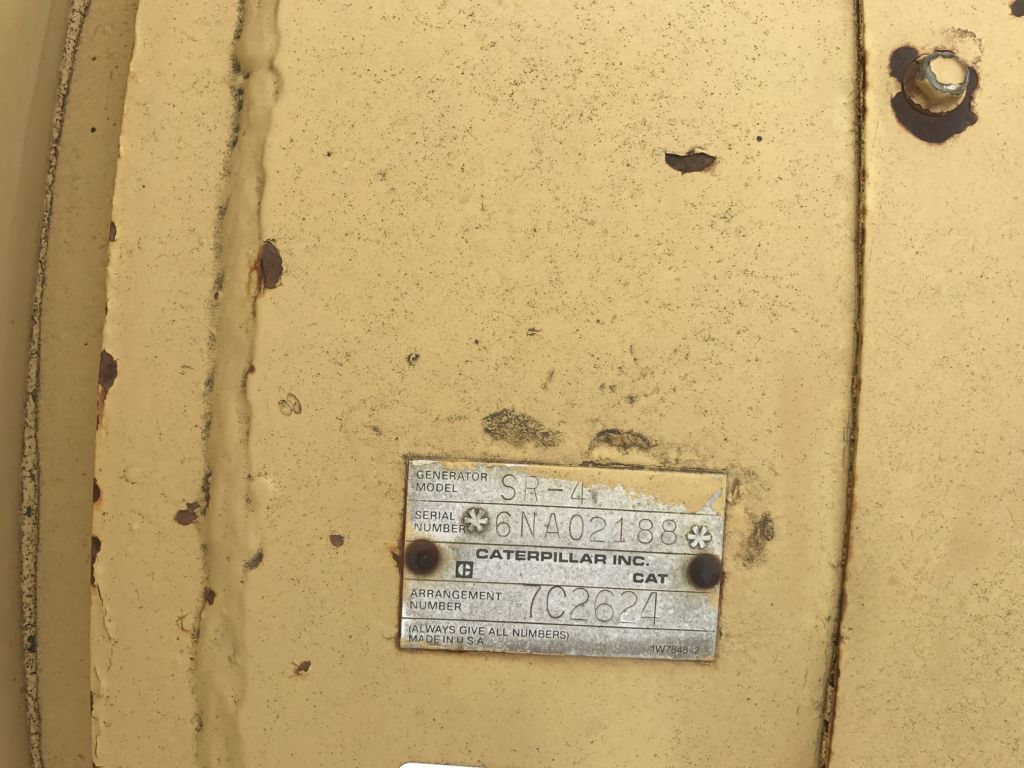

Generator End S/N
:
6NA02188
CAT Arrangement
:
7C2624
kW Rating
:
1000
kVA Rating
:
1250
Rating Type
:
Standby
Voltage
:
4160
Power Factor
:
0.8
Frequency
:
60Hz
Phase
:
3 Phase Phase
Leads
:
6
RPM
:
1800
Bearings
:
Single
Excitation Type
:
Permanent Magnet Excitation
Temp Rise
:
130C
Windings
:
Form Wound
Insulation Class
:
F


Accessories

High Mount Supports

React Power Quality Assurance

Each piece of our inventory is thoroughly inspected by one of our qualified technicians to ensure that
our customers will be 100% confident in the quality and safety of our products.
