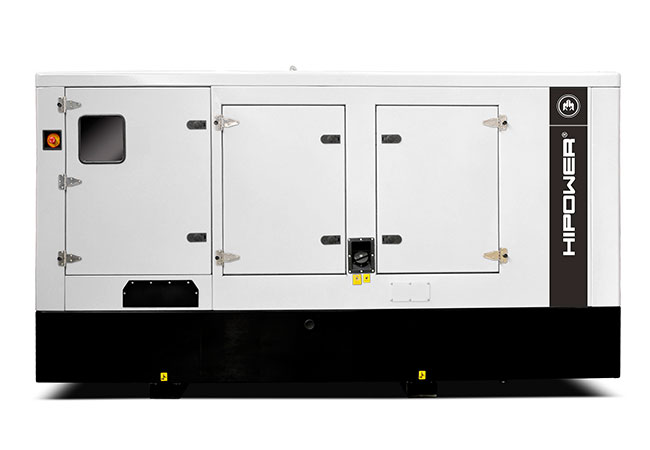

HIPOWER HFW 160 T6U Generator
Engine Details
Engine Manufacturer
:
IVECO
Engine Model
:
NEF67TE2X
Engine HP
:
268 HP
Engine RPM
:
1800 RPM
Governor
:
Electronic
Starter
:
Electric
Cooling Method
:
Radiator
Air Cleaner
:
Standard Duty
Ignition Type
:
Compression Ignition
Compression Ratio
:
17.5:1
Emissions Rating
:
Tier 3
Accessories
Turbo Guards
Manifold Guards
Fuel/Water Separator
Battery Rack
Battery Cables
Charging Alternator
Emergency Stop
Coolant Level Sensor
Generator End Details
Generator End Manufacturer
:
Stamford
Generator End Model
:
UCI 274 G - UCI 274 E(for 347/600V)
kW Rating
:
160
kVA Rating
:
200
Rating Type
:
Standby
Voltage
:
480
Power Factor
:
0.8
Frequency
:
60Hz
Leads
:
12 reconnectable
RPM
:
1800
Excitation Type
:
Self Excited
Temp Rise
:
150' C
Windings
:
Random Wound
Insulation Class
:
Class H
Voltage Regulator Model
:
AVR
Accessories
Flex Coupling
Generator Set Details
Package Manufacturer
:
HIPOWER
Package Model
:
HFW 160 T6U
Control Panel
:
DeepSea 7310
Accessories
Shunt Trip
Digital Voltage Regulator
UL 2200 Listed
UL 142 Fuel Tank
Additional Information
Sound attenuated canopy with rock-wool insulation, silencer, rounded corners for rigidity and weather protection & stainless steel fixtures
□ Electric actuator & louvers for air intake and exhaust (for above)
□ Alternator anti-condensation heaters
□ Residential silencer -35dBA (for open skid only)
□ Murphy oil make-up tank 2 or 4 gallon
Fuel Tank Options:
□ 24-hr UL142
□ 48-hr UL142
□ Remote annunicator
□ Static battery charger 6A or 10A UL
□ Engine block heater
□ Control panel heater
□ Radiator/Duct Mounted Load Bank - 30% of generator power
□ Battery blanket
