33.8 – 37.5 KVA XQ30 Diesel Generator Set
30 kW
MINIMUM RATING
27 kW
EMISSIONS/FUEL STRATEGY
Low Fuel consumption
| DOWNLOADS: |  Spec-Sheet-CAT-XQ30 |
OVERVIEW
30 KW Portable Generator
Providing a source of reliable power from 27-30 kW at 60 Hz, the XQ30 portable generator offers a mobile power solution suited to many field operations. The fully weatherproof enclosure incorporates internal exhaust silencers to reduce noise during operation. The XQ30 portable generator is EPA TIER 4 and CARB certified for non-road mobile applications.
FEATURES AT A GLANCE
| Sound attenuated enclosure reduces noise around site |
| Designed to survive rough treatment in rugged environments |
| Easy access for maintenance with excellent security and safety |
| Easily transportable with tested, certified single point lifting eye |
Your one-stop-shop for power equipment solutions.
When you work with React Power Solutions, we have the unique ability to offer custom solutions to the challenges you face on your worksite. Based in Houston, TX, we have everything you need to thrive in challenging work sites.
GENERATOR SET SPECIFICATIONS
| Minimum Rating | 27 kW |
| Maximum Rating | 30 kW |
| Frequency – Speed | 60 Hz (1800 rpm) |
| Voltages | 120 to 480 Volts |
| Duty Cycle | Standby, Prime |
ENGINE SPECIFICATIONS
| Engine Model | C2.2 |
| Bore | 33 in |
| Stroke | 3.9 in |
| Displacement | 135 in³ |
| Compression Ratio | 23:3 |
| Aspiration | ATAAC |
| Fuel System | Generator set fuel consumption/Fuel tank capacity |
| Governor Type | Electronic |
DIMENSIONS
| Length – Maximum | 148.2 in |
| Width – Maximum | 76.5 in |
| Height – Maximum | 81.3 in |

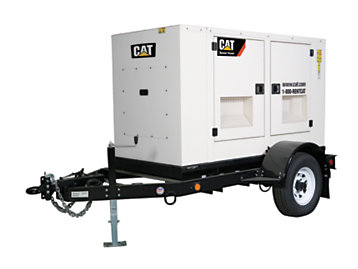

CAT XQ30 Diesel Generator
To get more information on the CAT XQ30 Diesel Generator, please send us a quick message and one of our specialists will contact you right away.
