169 KVA XQ135 Natural Gas Generator Set
135 kW
MINIMUM RATING
135 kW
EMISSIONS/FUEL STRATEGY
Capable of NSPS SI emissions site compliance, Proper air-fuel-ratio-control and three way catalyst provided to reduce emissions, Customer's responsibility to complete site-specific emissions demonstrating compliance to US EPA NSPS
| DOWNLOADS: |  Spec-Sheet-CAT-XQ135 |
OVERVIEW
135 KW Portable Generator Set
Producing reliable power continuous 135 kW at 60 Hz, this generator set is capable of NSPS SI emissions site compliance. With its robust, high-speed diesel block design, this model offers prolonged life to lower owning and operating costs. When you need a mobile solution for your power needs, this portable generator set offers a rugged design for durability and reliability.
FEATURES AT A GLANCE
| Open chamber combustion system offers reliability and fuel flexibility |
| Corrosion-resistant construction provides durability and ruggedness |
| Maximize performance on effective low-pressure gaseous fuel |
| Designed to offer easy, safe access for service and maintenance |
Your one-stop-shop for power equipment solutions.
When you work with React Power Solutions, we have the unique ability to offer custom solutions to the challenges you face on your worksite. Based in Houston, TX, we have everything you need to thrive in challenging work sites.
GENERATOR SET SPECIFICATIONS
| Minimum Rating | 135 kW |
| Maximum Rating | 135 kW |
| Frequency | 60 Hz |
| Voltages | 277 to 480 Volts, 139 to 240 Volts, 120 to 208 Volts |
| Duty Cycle | Standby, Prime |
ENGINE SPECIFICATIONS
| Engine Model | G3306 TA |
| Bore | 4.75 in |
| Stroke | 6.0 in |
| Displacement | 641 in³ |
| Compression Ratio | 8:1 |
| Aspiration | Turbocharged Aftercooled |
| Governor | Electronic ADEM A4 |
| Fuel System | Gas pressure regulator, low pressure fuel system, Energize to Run (ETR) gas shutoff valve, air-fuel-ratio-control controlled by ADEM™, Coalescing Filter, Methane detection |
DIMENSIONS
| Length – Maximum | 268 in |
| Width – Maximum | 102 in |
| Height – Maximum | 123 in |

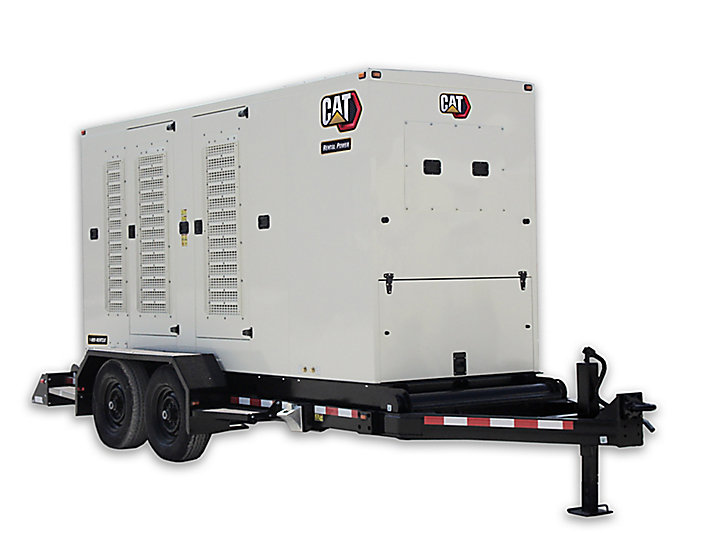

CAT XQ135 Natural Gas Generator
To get more information on the CAT XQ135 Natural Gas Generator, please send us a quick message and one of our specialists will contact you right away.
