112.5 -125 KVA XQ100 Diesel Generator Set
100 kW
MINIMUM RATING
90 kW
EMISSIONS/FUEL STRATEGY
Low Fuel consumption
| DOWNLOADS: |  Spec-Sheet-CAT-XQ100 |
OVERVIEW
100 KW Portable Generator
This 100 kW portable generator produces reliable power when and where you need it. Its corrosion-resistant construction makes it well-suited for a multitude of hazardous environments with internally mounted exhaust silencers to reduce operational noise. The XQ100 portable generator is EPA Tier 3 certified with an off-highway compliant engine as well as UL double-walled fuel tank base.
FEATURES AT A GLANCE
| Tested and certified transportability to provide power when and where you need it |
| Designed with safety and security in mind with lockable, viewable panels |
| Built to withstand harsh environments with rugged design |
| Simultaneous 3-phase voltage output |
Your one-stop-shop for power equipment solutions.
When you work with React Power Solutions, we have the unique ability to offer custom solutions to the challenges you face on your worksite. Based in Houston, TX, we have everything you need to thrive in challenging work sites.
GENERATOR SET SPECIFICATIONS
| Minimum Rating | 90 kW |
| Maximum Rating | 100 kW |
| Frequency – Speed | 60 Hz (1800 rpm) |
| Voltages | 120 to 480 Volts |
| Duty Cycle | Standby, Prime |
ENGINE SPECIFICATIONS
| Engine Model | C 4.4 |
| Bore | 4.13 in |
| Stroke | 5.0 in |
| Displacement | 269 in³ |
| Compression Ratio | 18.3:1 |
| Aspiration | Turbocharged |
| Fuel System | Generator set fuel consumption/Fuel tank capacity |
| Governor Type | Fully Electronic |
DIMENSIONS
| Length – Maximum | 194.74 in |
| Width – Maximum | 76.5 in |
| Height – Maximum | 101.5 in |

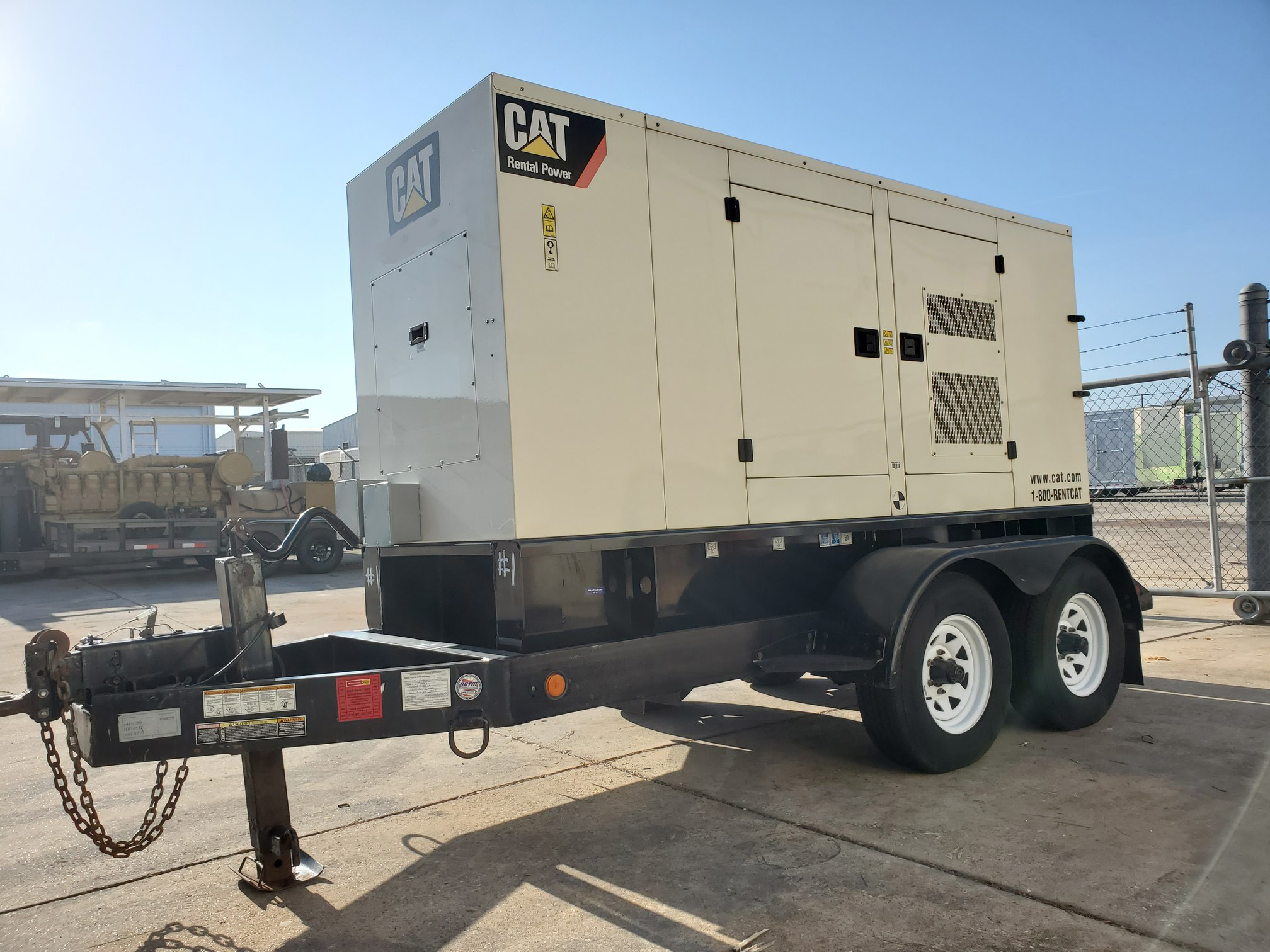

CAT XQ100 Diesel Generator
To get more information on the CAT XQ100 Diesel Generator, please send us a quick message and one of our specialists will contact you right away.
