1419 – 2027 KW Natural Gas Generator Set
MAXIMUM RATING
2027 KW
MINIMUM RATING
1419 KW
2027 KW
MINIMUM RATING
1419 KW
| DOWNLOADS: |  Spec-Sheet-CAT-G3516H |
OVERVIEW

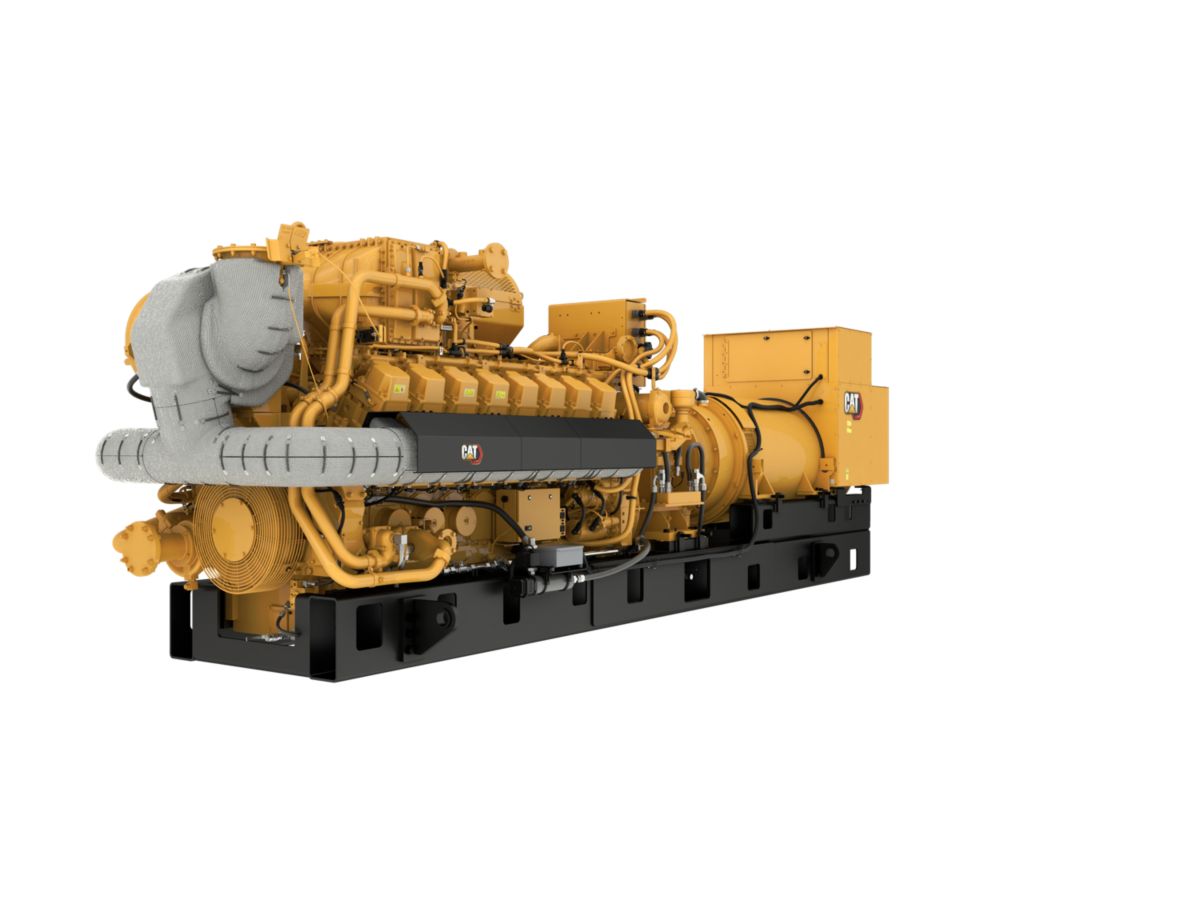

The Cat G3516H natural gas generator set produces reliable power from 1419 kW to 2027 kW at 60 Hz. When you need a flexible fuel power solution, trust this generator set to face your challenges head-on. Boasting the capacity to power both facilities with emergency power and CHP systems, the robust design is optimized for maximum performance.
FEATURES AT A GLANCE
| Up to 38% savings through reduced service |
| Improved electrical efficiency |
| Extended maintenance intervals |
| Industry-leading design |
Your one-stop-shop for power equipment solutions.
When you work with React Power Solutions, we have the unique ability to offer custom solutions to the challenges you face on your worksite. Based in Houston, TX, we have everything you need to thrive in challenging work sites.
GENERATOR SET SPECIFICATIONS
| Maximum Continuous Rating | 2007 – 2027 eKW @1.0pf |
| Fuel Type | Natural Gas |
| Maximum Electrical Efficiency | 45.3 % |
| Frequency | 50 – 60 Hz |
| Speed | 1500 – 1800 rpm |
ENGINE SPECIFICATIONS
| Engine Model | G3516H |
| Fuel System | Natural Gas |
| Governor Type | Electronic (ADEM ™ III) |
| Aspiration | TA |
| Displacement | 4765 in³ |
| Compression Ratio | 12.1 |
| Bore | 6.7 in |
| Stroke | 8.5 in |
DIMENSIONS
| Length | 291 in |
| Width | 84 in |
| Height | 95 in |
| Weight | 40384 lb |
CAT G3516H Natural Gas Generator
To get more information on the CAT G3516H Natural Gas Generator, please send us a quick message and one of our specialists will contact you right away.
