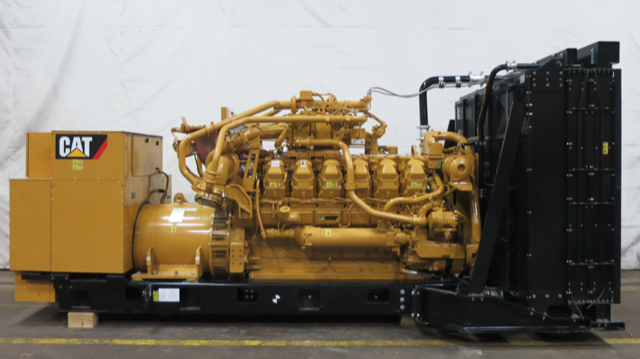

525 – 750 KW Natural Gas Generator Set
MAXIMUM RATING
750 KW
MINIMUM RATING
525 KW
750 KW
MINIMUM RATING
525 KW
| DOWNLOADS: |  Spec-Sheet-CAT-G3512 |
OVERVIEW
The Cat G3512 natural gas generator set produces reliable power from 525 – 750 kW at 60 Hz. Designed for fast response, this gas generator set delivers unmatched performance and reliability. Built to improve efficiency, this model offers a cost-effective solution to your power challenges.
FEATURES AT A GLANCE
| Meets EPA certification for non-emergency use UL2200 |
| Ready to power in 7.5 seconds |
| 100% block load in a single step |
| Robust design built to improve operating costs |
Your one-stop-shop for power equipment solutions.
When you work with React Power Solutions, we have the unique ability to offer custom solutions to the challenges you face on your worksite. Based in Houston, TX, we have everything you need to thrive in challenging work sites.
GENERATOR SET SPECIFICATIONS
| Gas Standby Rating | 1000 eKW @0.8pf |
| Frequency | 60 Hz |
| Emissions / Fuel Strategy | U.S. EPA Certified for Stationary Emergency Application |
| Fuel Type | Natural Gas |
| Speed | 1800 rpm |
ENGINE SPECIFICATIONS
| Engine Model | G3512 |
| Aspiration | TA |
| Displacement | 3173 in³ |
| Compression Ratio | 9.7 |
| Bore | 6.7 in |
| Stroke | 7.5 in |
DIMENSIONS
| Length | 205.7 in |
| Width | 90 in |
| Height | 99.4 in |
| Weight | 27500 lb |
CAT G3512 Natural Gas Generator
To get more information on the CAT G3512 Natural Gas Generator, please send us a quick message and one of our specialists will contact you right away.
