350 – 500 KW Natural Gas Generator Set
MAXIMUM RATING
500 KW
MINIMUM RATING
350 KW
500 KW
MINIMUM RATING
350 KW
| DOWNLOADS: |  Spec-Sheet-CAT-G3412-GAS-SET |
| Spec-Sheet-CAT-G3412 |
OVERVIEW
Offering reliable power from 350 – 500 kW at 60 Hz, the Cat G3412 natural gas generator set is a flexible solution for an array of applications. From CHP systems to emergency power and renewable support for local grids, this flexible fuel system meets many challenges. With proven in-field reliability, count on this gas generator set to power you forward.
FEATURES AT A GLANCE
| Robust block design promotes prolonged life |
| Built to maximize performance on low pressure pipelines |
| User-friendly navigation and interface |
| Power metering and protective relaying |
Your one-stop-shop for power equipment solutions.
When you work with React Power Solutions, we have the unique ability to offer custom solutions to the challenges you face on your worksite. Based in Houston, TX, we have everything you need to thrive in challenging work sites.
GENERATOR SET SPECIFICATIONS
| Frequency | 50 – 60 Hz |
| Maximum Continuous Rating | 423 eKW @0.8pf |
| Maximum Electrical Efficiency | 37.30 % |
| Maximum Standby Rating | 500 eKW @0.8pf |
| Speed | 1500 – 1800 rpm |
ENGINE SPECIFICATIONS
| Engine Model | G3412 |
| Aspiration | NA |
| Displacement | 1649 in³ |
| Bore | 5.4 in |
| Stroke | 6 in |
DIMENSIONS
| Length | 179 in |
| Width | 88 in |
| Height | 86 in |
| Weight | 9664 lb |

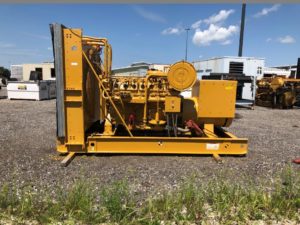

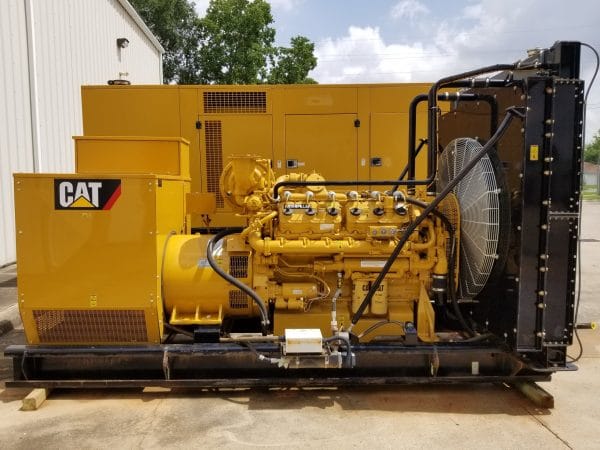

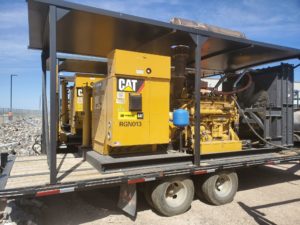

CAT G3412 Natural Gas Generator
To get more information on the CAT G3412 Natural Gas Generator, please send us a quick message and one of our specialists will contact you right away.
