175 KW Natural Gas Generator Set
175 eKW
MINIMUM RATING
175 eKW
| DOWNLOADS: |  Spec-Sheet-CAT-DG175-GC |
OVERVIEW
Producing reliable power of 175 kW at 60 Hz, the CAT DG175 GC natural gas generator set meets a broad spectrum of power needs. This model is U.S. EPA certified for stationary emergency use applications and designed to meet emission standards for local permits. The spark-ignited generator sets feature permanent magnet excitation and skewed stator through the EMCP controller.
FEATURES AT A GLANCE
| Up to 790 SKVA at 30% voltage dip |
| Class H alternator insulation for improved durability |
| Industry leading motor start capability |
| Able to start large connected motors throughout power outages |
Your one-stop-shop for power equipment solutions.
When you work with React Power Solutions, we have the unique ability to offer custom solutions to the challenges you face on your worksite. Based in Houston, TX, we have everything you need to thrive in challenging work sites.
GENERATOR SET SPECIFICATIONS
| Frequency | 60 Hz |
| Natural Gas Rating | 175 ekW |
| Emissions / Fuel Strategy | U.S. EPA Certified for Stationary Emergency Application |
| Fuel Type | Natural Gas |
| Speed | 1800 rpm |
ENGINE SPECIFICATIONS
| Engine Model | G14.2L Spark Ignited |
| Fuel System | Carburetor, Down Draft |
| Displacement | 14.17 in³ |
| Aspiration | Turbocharged – Aftercooler |
| Governor Type | Electronic |
| Compression Ratio | 9:5:1 |
| Bore | 5.31 in |
| Stroke | 6.5 in |
DIMENSIONS
| Length | 127.95 in |
| Width | 52.93 in |
| Height | 1711.2 in |
| Weight | 5756.05 lb |

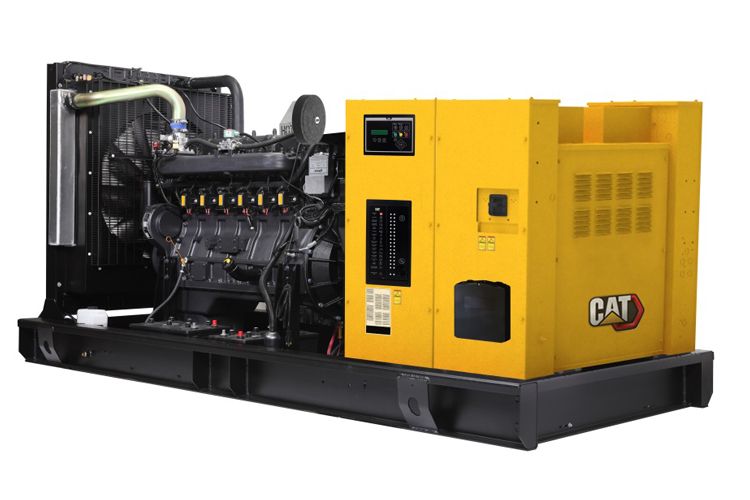

CAT DG175 GC Natural Gas Generator
To get more information on the CAT DG175 GC Natural Gas Generator, please send us a quick message and one of our specialists will contact you right away.
