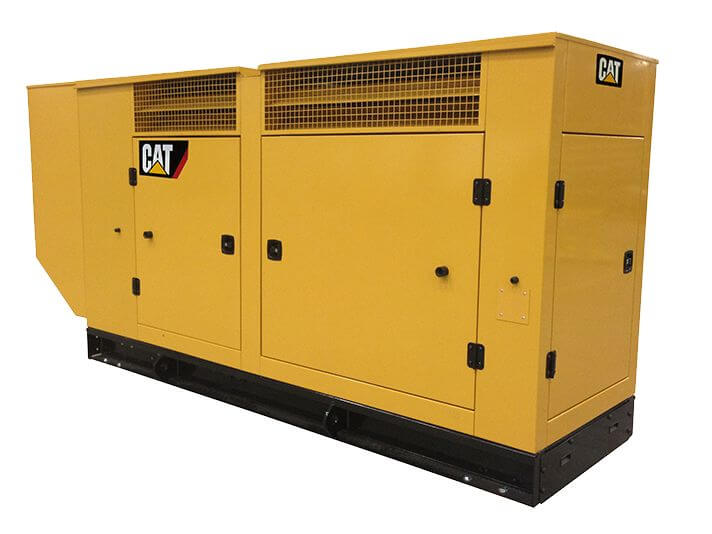

CAT DG125-2 Natural Gas Generator
125 KW Natural Gas Generator Set
MAXIMUM RATING
125 eKW
MINIMUM RATING
125 eKW
125 eKW
MINIMUM RATING
125 eKW
| DOWNLOADS: |  Spec-Sheet-CAT-DG125-2 |
OVERVIEW
Producing reliable power at 125 kW at 60 Hz, the DG125-2 natural gas generator set is built to meet your power needs. With a user-friendly interface, you have access to advanced management and diagnostic tools in an easy-to-use package. Designed to meet EPA certifications for stationary use, this model complies with local permit requirements.
FEATURES AT A GLANCE
| Up to 363 SKVA at 30% voltage dip |
| Works with most existing pipeline supply pressures |
| Able to start up large connect motors during power outages |
| Scalable system to meet a range of requirements |
Your one-stop-shop for power equipment solutions.
When you work with React Power Solutions, we have the unique ability to offer custom solutions to the challenges you face on your worksite. Based in Houston, TX, we have everything you need to thrive in challenging work sites.
GENERATOR SET SPECIFICATIONS
| Voltage | 480 Volts |
| Frequency | 60 Hz |
| Natural Gas/LPG Rating | 125 ekW |
| Emissions / Fuel Strategy | U.S. EPA Certified for Stationary Emergency Application |
| Speed | 1800 rpm |
ENGINE SPECIFICATIONS
| Engine Model | 8.8L V8, 4-cycle Gas |
| Fuel System | Natural Gas |
| Displacement | 535 in³ |
| Aspiration | Turbocharged |
| Governor Type | Electronic |
| Compression Ratio | 10:1:1 |
| Bore | 4.35 in |
| Stroke | 4.5 in |
DIMENSIONS
| Length | 119.6 in |
| Width | 43.7 in |
| Height | 65.2 in |
| Weight | 3084 lb |
