200 ekW – 300 ekW DIESEL GENERATOR SET
MAXIMUM RATING
300 ekW
MINIMUM RATING
200 ekW
FUEL
Low Fuel, Tier 3
| DOWNLOADS: |  Spec-Sheet-CAT-C9 |
OVERVIEW
Offering reliable power from 200 – 300 ekW at 60Hz, the CAT C9 diesel generator sets meet the ISO 8528-5 transient response requirements.
Built to handle rough environments, this diesel generator set provides an easy-t0-maintain power source.
FEATURES AT A GLANCE
| Galvanized steel construction for corrosion resistance |
| Removable ducts for easy maintenance access with enclosure in place |
| Lockable access doors for full access to control panel and breaker |
| Robust construction built to handle rough environments |
Your one-stop-shop for power equipment solutions.
When you work with React Power Solutions, we have the unique ability to offer custom solutions to the challenges you face on your worksite. Based in Houston, TX, we have everything you need to thrive in challenging work sites.
GENERATOR SET SPECIFICATIONS
| Maximum Rating | 300 ekW |
| Minimum Rating | 200 ekW |
| Generator Set Control | EMCP 4.2 |
| Generator | IP23 |
| Frequency – Speed | 60 Hz (1800 rpm) |
| Voltages | 220 to 480 Volts |
| Duty Cycles | Standby, Prime |
ENGINE SPECIFICATIONS
| Engine Model: | C9 ATAAC, I-6, 4-Stroke Water-Cooled Diesel |
| Bore: | 4.41 in |
| Stroke: | 5.87 in |
| Displacement: | 537.01 in³ |
| Aspiration: | Air to Air Aftercooled |
| Manifold Type: | Dry, Air-cooled |
| Engine Control and Protection: | ADEM A4 |
| Emmissions/Fuel Strategy: | Low Fuel, Tier 3 |
DIMENSIONS
| Length | 157 in |
| Width | 47.5 in |
| Height | 73.5 in |
| Weight | 7559.6 lb |

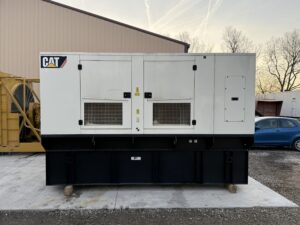

CAT C9 Diesel Generator
To get more information on the CAT C9 Diesel Generator, please send us a quick message and one of our specialists will contact you right away.
