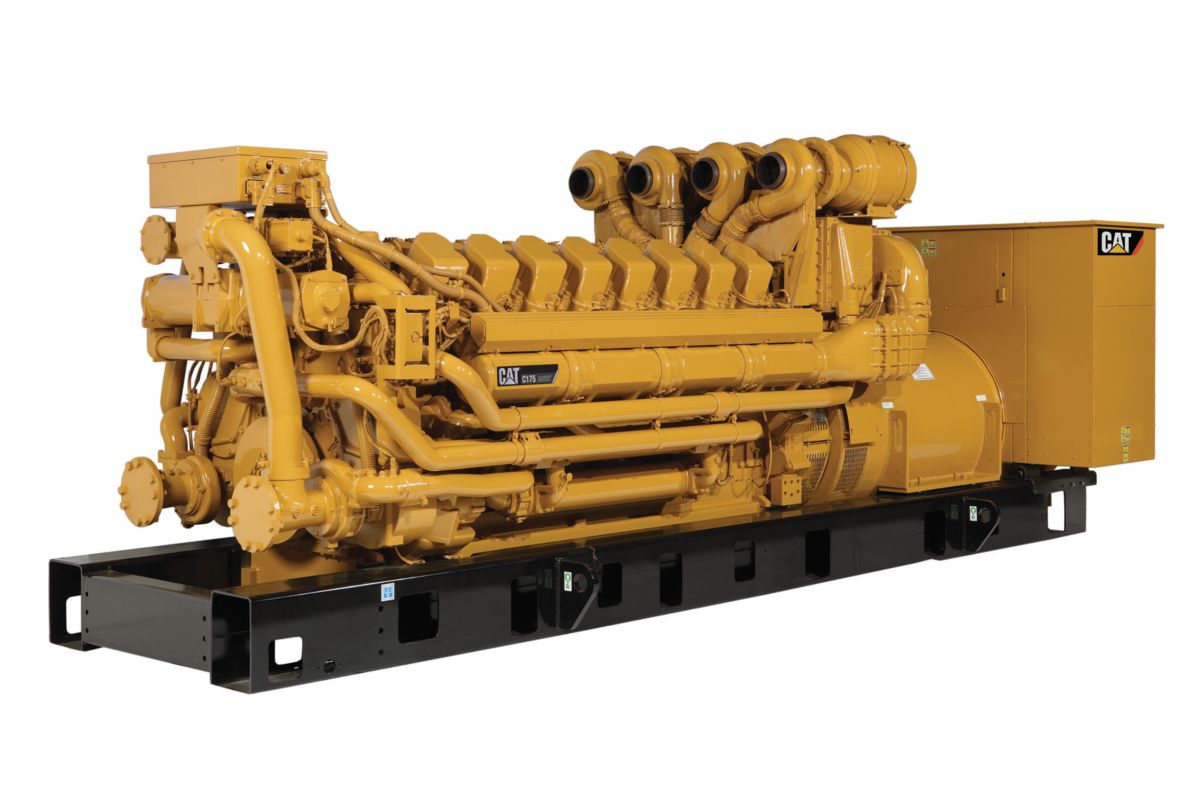

2616 – 3325 kVA C175-16 Marine Offshore Diesel Generator Set
3100 ekW
MINIMUM RATING
2500 ekW
EMISSIONS/FUEL STRATEGY
Low Fuel,Tier 2
DOWNLOADS: | Spec-Sheet-CAT-C175-16-Marine-Offshore |
OVERVIEW
2500-3100 EKW Diesel Generator Set
The C175-16 diesel generator set produces reliable power ranging from 2500 – 3100 ekW at 60 Hz. Designed to meet your power needs, it offers a solid power source for mission-critical, standby, prime, or continuous applications. Built to meet ISO 8528-5 transient response requirements. The C175-16 diesel generator set is Low Fuel Consumption and U.S. EPA Certified for Stationary Emergency Use Only (Tier 2 Nonroad Equivalent Emission Standards) certified.
FEATURES AT A GLANCE
Built with a rugged design for durability and reliability |
Proven reliability in thousands of field applications |
Designed to match the standard performance characteristics of Cat diesel engines |
User-friendly interface and scalable system |
Your one-stop-shop for power equipment solutions.
When you work with React Power Solutions, we have the unique ability to offer custom solutions to the challenges you face on your worksite. Based in Houston, TX, we have everything you need to thrive in challenging work sites.
GENERATOR SET SPECIFICATIONS
Minimum Rating | 2500 ekW |
Maximum Rating | 3100 ekW |
Emissions/Fuel Strategy | Available in IMO Tier II, EPA Marine Tier 2 configurations/Common Rail/EUIâ„¢ |
Voltage | 600 Volts |
Frequency | 60 Hz |
Speed | 1200/1500/1800 RPM |
Duty Cycle | Standby |
ENGINE SPECIFICATIONS
Engine Model | ISO 8528-5 |
Bore | 6.89 in |
Stroke | 8.66 in |
Displacement | 5167 in³ |
Aspiration | Turbocharged/2-stage aftercooled |
Fuel System | Common Rail/EUIâ„¢ |
DIMENSIONS
Length – Maximum | 267 in |
Width – Maximum | 95 in |
Height – Maximum | 115 in |
Dry Weight – Genset | 53599 lb |
CAT C175-16 Marine Offshore Diesel Generator
To get more information on the CAT C175-16 Marine Offshore Diesel Generator, please send us a quick message and one of our specialists will contact you right away.
