350 ekW – 400 ekW DIESEL GENERATOR SET
MAXIMUM RATING
400 ekW
MINIMUM RATING
350 ekW
FUEL
EPA Stationary Emerg Use
| DOWNLOADS: |  Spec-Sheet-CAT-C13 |
OVERVIEW
A reliable power source offering 350 – 400 ekW at 60 Hz, the C13 diesel generator set package is prototype-tested.
CAT designed the C13 diesel generator to meet the NFPA 110 requirement for loading, conform to the ISO 8528-5 steady-state, and fill transient response requirements.
FEATURES AT A GLANCE
| Integral and sub-base fuel tanks |
| Corrosion-resistant construction to function in extreme conditions |
| Robustly constructed for outdoor exposure and rough handling |
| Lockable access and guarded parts |
| Easy access for efficient maintenance processes |
Your one-stop-shop for power equipment solutions.
When you work with React Power Solutions, we have the unique ability to offer custom solutions to the challenges you face on your worksite. Based in Houston, TX, we have everything you need to thrive in challenging work sites.
GENERATOR SET SPECIFICATIONS
| Maximum Rating | 400 ekW |
| Minimum Rating | 350 ekW |
| Generator Set Control | EMCP 4.2 |
| Generator | IP22 |
| Frequency – Speed | 60 Hz (1800 rpm) |
| Voltages | 208 to 600 Volts |
| Duty Cycles | Standby, Prime |
ENGINE SPECIFICATIONS
| Engine Model: | C13 ACERT In-line 6, 4-cycle diesel |
| Bore: | 5.12 in |
| Stroke: | 6.2 in |
| Displacement: | 763 in³ |
| Aspiration: | Turbocharged Air to Air Aftercooled |
| Manifold Type: | Dry, Air-cooled |
| Engine Control and Protection: | ADEM A4 |
| Emmissions/Fuel Strategy: | EPA Stationary Emerg Use |
DIMENSIONS
| Length | 186.7 in |
| Width | 79.3 in |
| Height | 84 in |
| Weight | 2570 lb |

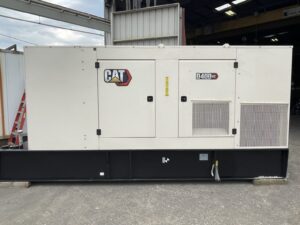

CAT C13 Diesel Generator
To get more information on the CAT C13 Diesel Generator, please send us a quick message and one of our specialists will contact you right away.
