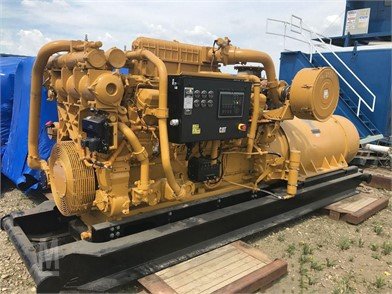

1045 eKW 3512C Land Electric Diesel Generator Set
1045 ekW
MINIMUM RATING
1045 ekW
EMISSION/FUEL STRATEGY
U.S. EPA Nonroad Tier 2/EUI
| DOWNLOADS: |  Spec-Sheet-CAT-3512C-Land-Electric |
OVERVIEW
1045 EKW Diesel Generator Set
Offering reliable power at 1045 ekW at 60 Hz, the 3512C Land Electric diesel generator set is built for the complex task of oil and gas drilling. These diesel generator sets combine decades of experience with modern electronics for reduced emissions, simplified interface, and improved performance. Design specifically for the drilling operations of electric AC rigs, this power module meets U.S. EPA Tier 2 equivalent emission standards and is available in regulated and non-regulated areas using U.S. EPA Flexibility.
FEATURES AT A GLANCE
| Rugged, durable design allows operation in harsh conditions |
| Proven reliability across field applications worldwide |
| Trusted CAT design driven by petroleum experience |
| Full-load tested to ensure performance standards |
Your one-stop-shop for power equipment solutions.
When you work with React Power Solutions, we have the unique ability to offer custom solutions to the challenges you face on your worksite. Based in Houston, TX, we have everything you need to thrive in challenging work sites.
GENERATOR SET SPECIFICATIONS
| Minimum Rating | 1045 ekW |
| Maximum Rating | 1045 ekW |
| Emissions/Fuel Strategy | U.S. EPA Nonroad Tier 2/EUI |
| Voltage | 600 Volts |
ENGINE SPECIFICATIONS
| Bore | 6.69 in |
| Stroke | 7.48 in |
| Displacement | 3158 in³ |
| Aspiration | Turbocharged-Aftercooled |
DIMENSIONS
| Length – Maximum | 238.2 in |
| Width – Maximum | 91.2 in |
| Height – Maximum | 104.7 in |
| Dry Weight | 31864 lb |
CAT 3512C Land Electric Diesel Generator
To get more information on the CAT 3512C Land Electric Diesel Generator, please send us a quick message and one of our specialists will contact you right away.
