1245 ekW 3512C (HD) Generator Set
MAXIMUM RATING
1245 ekW
MINIMUM RATING
1245 ekW
EMISSIONS/FUEL STRATEGY
U.S. EPA Certified
1245 ekW
MINIMUM RATING
1245 ekW
EMISSIONS/FUEL STRATEGY
U.S. EPA Certified
| DOWNLOADS: |  Spec-Sheet-CAT-3512C (HD) |
OVERVIEW
The 3512C (HD) generator set meets the specialized needs of oil and gas drilling.
Combining decades of field experience with modern technology, this generator set provides stronger performance, lower emissions, and a simplified interface.
Providing reliable power at 1245 ekW at 60 Hz, this set meets U.S. EPA Tier 2 equivalent emission standards.
FEATURES AT A GLANCE
| Full-load tested to ensure proper performance |
| Durable design offers reliability in the field |
| Corrosion-resistant coating to ensure longevity |
| Flexible construction to meet your unique needs |
Your one-stop-shop for power equipment solutions.
When you work with React Power Solutions, we have the unique ability to offer custom solutions to the challenges you face on your worksite. Based in Houston, TX, we have everything you need to thrive in challenging work sites.
GENERATOR SET SPECIFICATIONS
| Minimum Rating | 1245 ekW |
| Maximum Rating | 1245 ekW |
| Emissions/Fuel Strategy | U.S. EPA Certified |
| Voltage | 380 to 13800 Volts |
| Frequency | 60 Hz |
| Speed | 1800 rpm |
| Duty Cycle | Standby, Mission Critical, Prime, Continuous |
ENGINE SPECIFICATIONS
| Engine Model | 3512C ATAAC, V-12, 4-Stroke Water-Cooled Diesel |
| Bore | 6.69 in |
| Stroke | 8.46 in |
| Displacement | 3573.55 in³ |
| Compression Ratio | 14.7:1 |
| Aspiration | TA |
| Fuel System | Electronic unit injection |
| Governor Type | Adem™3 |
DIMENSIONS
| Length – Maximum | 248.6 in |
| Width – Maximum | 89.8 in |
| Height – Maximum | 110 in |
| Dry Weight – Genset (maximum) | 30790 lb |

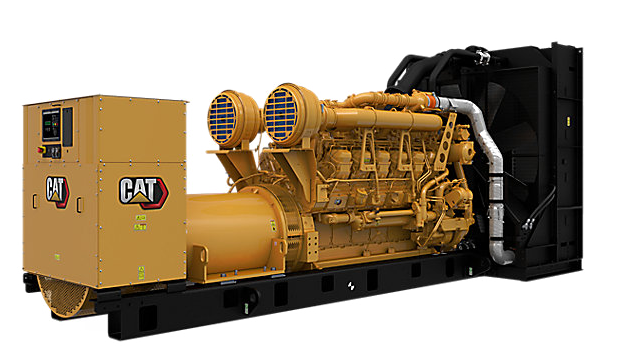

CAT 3512C (HD) Diesel Generator
To get more information on the CAT 3512C (HD) Diesel Generator, please send us a quick message and one of our specialists will contact you right away.
