Power outages test more than your generator. They test your system design.

I have seen standby systems start perfectly during an outage, only to fail inspection weeks later because of one issue: improper generator grounding. In other cases, breakers did not trip during a fault because bonding was incorrect. Both situations were preventable.

If you are an electrical contractor or facility engineer, you already know this truth: a generator that is not grounded and bonded correctly is a safety risk. It may also violate code, fail inspection, or create hidden current paths that damage equipment.

This guide explains generator grounding and generator bonding clearly. It walks through transfer switch scenarios. It also highlights the most common configuration mistakes we see in commercial and industrial installations.

Key Takeaways

• Generator grounding connects the system to earth and stabilizes voltage.
• Generator bonding connects neutral to ground at one location only.
• There must be one and only one neutral-to-ground bond in a system.
• If a transfer switch switches the neutral, the generator becomes a separately derived system.
• A floating neutral generator behaves differently than a bonded neutral generator.
• A generator grounding rod may be required depending on configuration.
• Earth is not an effective fault current path by itself.

What Is Generator Grounding?

Generator grounding is the connection between the generator system and the earth. This connection is made using a grounding electrode conductor that typically connects to a grounding electrode, such as a copper rod driven into the soil.

In simple terms, grounding gives the electrical system a reference point.

Grounding serves three core purposes:

1. It stabilizes system voltage.
2. It helps limit voltage from lightning or line surges.
3. It supports fault clearing when properly bonded.

In commercial installations, grounding is governed by NEC Article 250. If the generator supplies feeders to a structure, additional rules apply under NEC Article 225 and 250.32.

If you are installing a generator inside a building, grounding requirements must also coordinate with generator room requirements under NFPA and NEC code compliance. Proper bonding and grounding must align with room design and transfer equipment selection.

What Is Generator Bonding?

Grounding and bonding are not the same. Generator bonding refers to connecting the neutral conductor to the generator frame or equipment grounding system. Bonding creates the low-impedance path required to clear a ground fault. Without bonding, a fault may not generate enough current to trip an overcurrent device.

Here is the rule that governs all safe system design:

There must be one neutral-to-ground bond in an electrical system. Not zero. Not two.

In most buildings, this bond exists at the service entrance. When a generator enters the picture, the location of that bond depends on transfer switch design.

Bonded Neutral Generator vs Floating Neutral Generator

Understanding whether you have a bonded neutral generator or a floating neutral generator is critical.

Bonded Neutral Generator

In a bonded configuration:

• The neutral is connected to the generator frame internally.
• Continuity exists between neutral and ground at the generator.
• This is common in portable generators.

This configuration works safely when powering cord-and-plug equipment. It may not be correct when feeding a building through a transfer switch.

Floating Neutral Generator

In a floating neutral configuration:

• The neutral is isolated from the generator frame.
• There is no internal bond.
• The neutral-to-ground bond exists elsewhere in the system.

Floating neutral generators are common in permanent standby systems where the bond remains at the service entrance. If you are unsure which configuration you have, you can test continuity between neutral and frame with the generator off and disconnected.

How Transfer Switch Type Changes Generator Grounding

Transfer switch configuration determines whether the generator becomes a separately derived system. This is the most important concept in generator grounding.

Scenario 1: Transfer Switch Does NOT Switch the Neutral

In this scenario:

• The neutral conductor remains solidly connected to the service neutral.
• The generator neutral ties into the existing system neutral.
• The neutral-to-ground bond remains at the service equipment.

The generator is NOT a separately derived system.

In this configuration:

• The generator must NOT have an internal bonding jumper.
• The neutral and ground must remain isolated at the generator.
• An effective ground-fault path is provided through the service bonding point.

Common Mistake: Double Bonding

If the generator is bonded internally and the service is also bonded, you now have two bonding points. This creates parallel neutral paths. Return current will divide between the neutral and equipment grounding conductors. That means grounding conductors may carry current during normal operation. That condition violates code and creates shock risk.

Scenario 2: Transfer Switch Switches the Neutral

When the transfer switch switches the neutral conductor, the generator becomes a separately derived system.

In this case:

• The load neutral disconnects from the service neutral during generator operation.
• The generator must establish its own neutral-to-ground bond.
• A grounding electrode connection is required at the generator location.

Now the generator becomes the reference point during standby mode.

If bonding is missing in this configuration, a ground fault may not clear. Breakers may not trip. Equipment damage or shock hazards can result.

This configuration must comply with NEC 250.30 for separately derived systems.

Generator Grounding Rod: When Is It Required?

Many installers assume every generator requires its own grounding rod. That is not always correct.

A generator grounding rod is typically required when the:

• generator is a separately derived system.
• generator is located outdoors and serves as a source.
• authority having jurisdiction requires it.

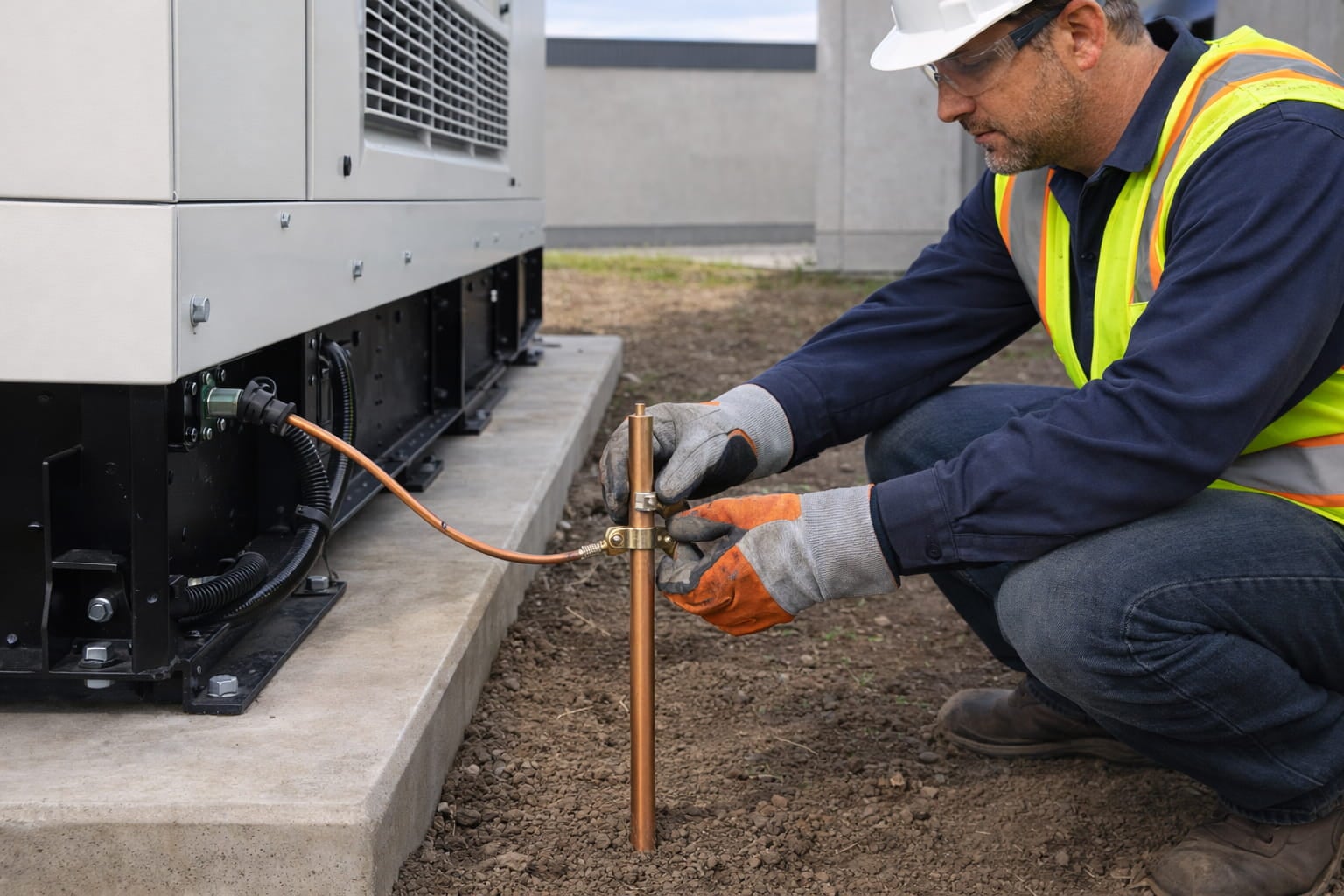

A grounding rod is typically an 8-foot copper or copper-clad rod driven into earth and connected with a properly sized grounding electrode conductor.

However, the earth is not an effective fault current path.

The grounding electrode stabilizes voltage. The bonding system clears faults.

If you install a rod but fail to provide proper bonding, you have not created a safe system.

Common Generator Grounding Mistakes in Commercial Installations

Over the years, we have seen recurring configuration errors.

1. Double Neutral Bonding

This is the most common issue.

Symptoms include:

• Ground wires carrying return current.
• Nuisance breaker trips.
• Failed inspections.

Fix:

Verify bond location. Remove internal bonding jumper if required.

2. Floating Neutral in a Separately Derived System

If the neutral is switched but no bond exists at the generator, the system lacks a proper fault path.

Symptoms include:

• Fault current that does not trip protective devices.
• Elevated touch voltage.

Fix:

Install neutral-to-ground bond at generator and connect grounding electrode conductor properly.

3. Assuming Portable Rules Apply to Permanent Systems

Portable generators powering tools via extension cords often do not require a grounding rod. Commercial standby systems feeding buildings follow different rules. Permanent installations must follow NEC grounding and bonding guidance.

4. Ignoring Transfer Switch Documentation

The transfer switch determines system grounding design.

Always confirm:

• Is the neutral solid or switched?
• Is it service entrance rated?
• Is there a fourth pole?

Incorrect assumptions lead to misbonded systems.

How to Identify Your Generator Grounding Configuration

Use this checklist:

• Does the transfer switch switch the neutral?
• Is there continuity between neutral and frame at the generator?
• Is there a grounding electrode at the generator?
• Is the system documented as separately derived?

Testing should occur with the generator de-energized.

If the installation includes diesel equipment, coordinate grounding with overall diesel generator safety operation guide requirements, especially during maintenance and fuel handling.

Why Proper Grounding Protects Personnel

Improper generator grounding can create dangerous conditions.

A fault from phase to frame must produce enough current to trip a breaker quickly.

Without a low-impedance path:

• The generator frame may remain energized.
• Personnel may contact energized metal.
• OSHA electrical safety resources emphasize proper grounding and bonding for worker protection.

Lockout and tagout procedures must be followed during inspection and bonding modifications.

Generator Grounding in Multi-Generator and Parallel Systems

Complex facilities may use parallel generators.

In those systems:

• Neutral switching design becomes even more critical.
• A single bonding point must still exist.
• Paralleling switchgear must coordinate grounding design.

If you do not understand how your neutral bus is configured in parallel switchgear, stop and verify before energizing.

Grounding mistakes in parallel systems can create circulating currents and protective device miscoordination.

Real-World Example: 800 kW Industrial Installation

Consider this example:

• 800 kW diesel generator.
• 4-pole automatic transfer switch.
• Neutral switched.
• Generator located outdoors.

Because the neutral is switched:

• The generator is a separately derived system.
• Neutral-to-ground bond installed at generator.
• Grounding electrode conductor connected to ground rod.
• Equipment grounding conductors sized per code.

During commissioning:

• Continuity verified.
• Fault simulation confirmed breaker clearing.
• Inspection passed.

Without that bonding at the generator, the system would have failed testing.

Frequently Asked Questions

How do you properly ground a generator?

First determine whether the generator is separately derived. If it is, bond neutral to ground at the generator and connect a grounding electrode conductor to a grounding electrode. If it is not separately derived, keep neutral isolated and maintain a single bond at the service.

What happens if you do not ground a generator?

Without grounding and bonding, fault current may not clear properly. This can result in shock hazards, equipment damage, or fire risk.

What is the NEC code for generator grounding?

Grounding and bonding rules are primarily covered in NEC Article 250. Separately derived systems are addressed in 250.30. Feeders to separate structures involve 250.32 and 225 requirements.

Why does a generator need bonding?

Bonding creates the effective ground-fault current path required to trip overcurrent protection devices.

How Generator Grounding Connects to Overall System Design

Grounding is not an isolated task.

It connects directly to:

• Transfer switch design
• Generator room layout
• Fuel system placement
• Overcurrent protection
• Service entrance configuration

If you need a refresher on generator fundamentals, review how does a generator work to understand how electrical output interacts with grounding and bonding design.

Grounding Is Foundational

Generator grounding is not an afterthought. It is foundational to system safety. Bonding is not optional. It is required for fault clearing. Transfer switch design determines bonding location. There must be one neutral-to-ground bond.

At React Power Solutions, we help contractors and facility engineers confirm correct configurations before commissioning. We work with commercial and industrial generator systems every day. We understand how grounding decisions affect long-term reliability and inspection outcomes.

If you are installing, upgrading, or troubleshooting a standby system, verify your grounding and bonding design before the next outage tests it.
