As someone who has spent years working with commercial and industrial power systems, I can say this with confidence: a standby generator is only as reliable as the system that tells it when to run. That system is the automatic transfer switch.
When a power outage hits, facility teams do not have time to react manually. Operations need power restored in seconds, not minutes. An automatic transfer switch makes that happen by detecting utility failure, starting the generator, and transferring electrical load without human intervention. In critical facilities, that automation is the difference between continuity and downtime.
In this article, I’ll walk through what an automatic transfer switch does, how it works inside a standby power system, and where it fits in commercial and industrial applications.
What Is an Automatic Transfer Switch?
An automatic transfer switch (ATS) is an electrical device that monitors incoming utility power and automatically transfers a facility’s electrical load to a backup power source when an outage occurs.
In most commercial and industrial environments, that backup source is a standby generator. When utility voltage or frequency falls outside acceptable limits, the ATS sends a start signal to the generator, waits for stable output, then transfers the load. When utility power returns, the ATS switches the load back and shuts the generator down.
This entire process happens without operator input. That automation is why an ATS is required in many regulated environments and recommended in almost every mission-critical facility.
Facilities subject to NFPA 110 installation standards rely on automatic transfer switches to meet strict response-time requirements for emergency power systems.
Where the Automatic Transfer Switch Fits in a Standby Power System
A commercial standby system has three core components:
-
Utility power source
-
Generator system
-
Automatic transfer switch
The ATS sits between the utility service and the facility’s electrical distribution system. It acts as the gatekeeper, ensuring that power flows from only one source at a time.
Without a transfer switch for a generator, backfeeding can occur. Backfeeding is dangerous, illegal under electrical code, and puts utility workers and facility staff at risk. This is why NEC guidance on emergency power systems requires an approved transfer mechanism for any generator connection.
The ATS also integrates closely with generator controls, fuel systems, and, in many cases, building management systems.

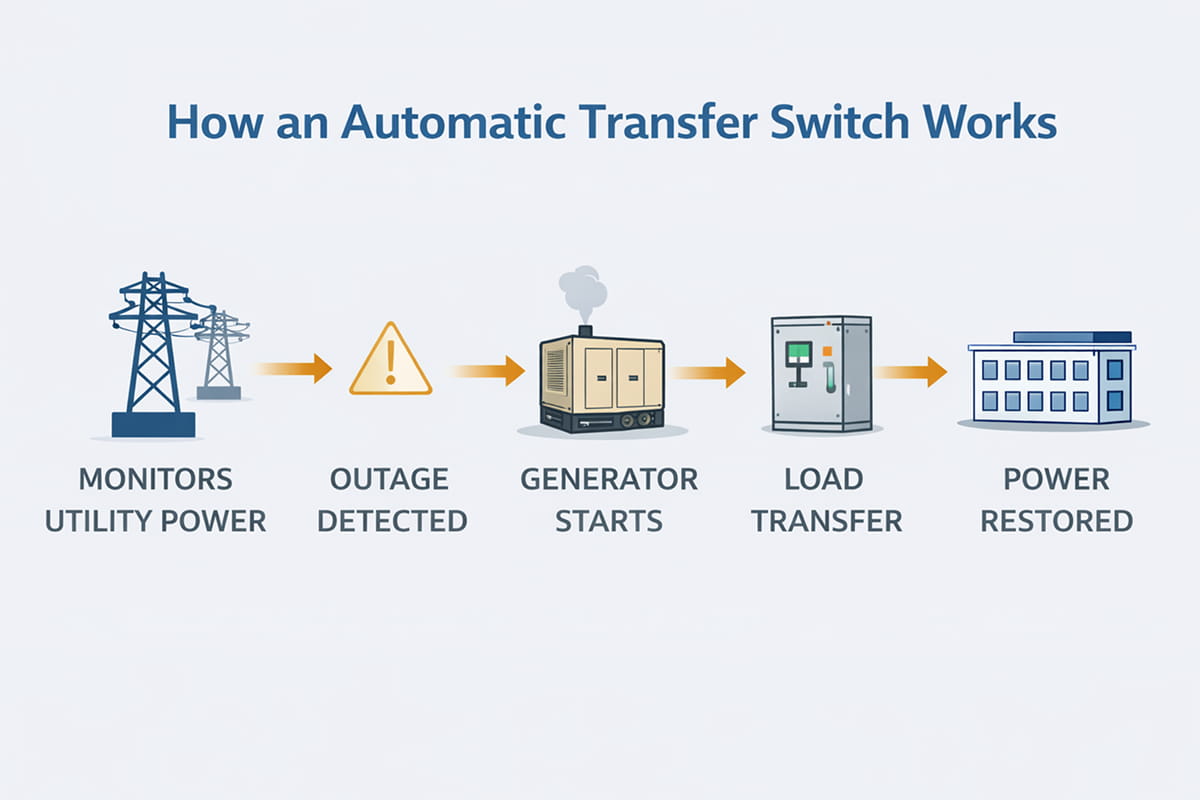

How an Automatic Transfer Switch Works Step by Step
Understanding how an ATS operates helps facility managers diagnose issues and plan systems correctly.
1. Continuous Power Monitoring
The ATS constantly monitors utility voltage and frequency. If power drops outside programmed tolerances, the controller recognizes a failure.
2. Generator Start Command
Once a fault is detected, the ATS signals the generator to start. This happens immediately.
3. Generator Stabilization
The ATS waits until the generator reaches proper voltage and frequency. This usually takes a few seconds.
4. Load Transfer
The ATS disconnects the facility from the utility source and connects it to generator power. In most systems, this is a break-before-make transfer.
5. Utility Restoration
When stable utility power returns, the ATS transfers the load back to the grid and initiates generator cooldown and shutdown.
This entire sequence is designed to meet code-driven time limits defined in NFPA 110 emergency power system requirements.
Automatic Transfer Switch vs Manual Transfer Switch
One of the most common questions I hear is about ATS vs manual transfer switch options.
A manual transfer switch requires a person to physically initiate the transfer. These are sometimes used in small facilities or temporary setups, but they are not suitable for most commercial or industrial operations.
An automatic transfer switch removes human delay and error. It ensures consistent response time, even if a facility is unoccupied during an outage.
For regulated facilities such as healthcare, data centers, water treatment plants, and manufacturing sites, a manual option simply does not meet operational or compliance needs.
Types of Automatic Transfer Switches Used in Commercial Facilities
Not all generator transfer switches are the same. Selection depends on load type, uptime requirements, and maintenance strategy.
Standard ATS
This is the most common configuration for general commercial buildings. It transfers load automatically between utility and generator.
Service Entrance ATS
Installed at the main electrical service entrance, this ATS can isolate the building from the utility and manage emergency loads from a single point.
Bypass-Isolation ATS
In critical environments, downtime for maintenance is not acceptable. A bypass-isolation ATS allows technicians to service or replace the switch without interrupting power to the load. These are commonly specified in hospitals and data centers and align with NEMA ATS design best practices.
Open Transition vs Closed Transition Transfer
Most automatic transfer switches use an open transition, meaning there is a brief break between utility and generator power. For most loads, this interruption is insignificant.
Some facilities require closed transition transfer, where both sources are momentarily connected to avoid any power loss. These systems are more complex and require utility coordination, but they are useful for sensitive equipment and continuous-process environments.
Choosing the correct transition type depends on load sensitivity, regulatory constraints, and utility interconnection rules.
Where Automatic Transfer Switches Are Used
An automatic transfer switch is found anywhere power loss creates safety risk or financial impact.
Common applications include:
-
Healthcare facilities and clinics
-
Data centers and server rooms
-
Manufacturing plants
-
Water and wastewater treatment facilities
-
Telecommunications infrastructure
-
Distribution centers and cold storage facilities
Facilities that already invest in commercial generators should treat the ATS as equally critical infrastructure.
Code and Compliance Considerations for ATS Installation
Automatic transfer switches are governed by multiple codes and standards. Design teams must account for:
-
NEC emergency circuit requirements for separation and labeling
-
NFPA 110 compliance for emergency and standby systems
-
Local authority having jurisdiction (AHJ) requirements
ATS placement also ties directly into generator room requirements and NFPA and NEC code compliance, including clearance, ventilation, fire ratings, and accessibility.
Improper ATS installation is one of the most common reasons systems fail inspection or experience real-world operational issues.
ATS Integration with Generator Rooms and Electrical Infrastructure
The ATS does not operate in isolation. It must integrate with:
-
Generator controls and alarms
-
Fuel system monitoring
-
Load shedding or priority controls
-
Remote annunciators
When ATS placement is poorly planned, it complicates maintenance and increases response time during emergencies. This is why ATS selection should be addressed early during generator room design and system layout.
What Happens When an ATS Fails?
ATS failure is rare when systems are designed and maintained correctly, but it can happen.
Common causes include:
-
Control board failure
-
Improper maintenance
-
Environmental exposure
-
Incorrect sizing
Routine testing under load is required to verify ATS performance. Many facilities tie ATS testing into broader power outage emergency response planning to ensure staff know what to expect during real events.
Selecting the Right Automatic Transfer Switch
When selecting an automatic transfer switch, facility teams should consider:
-
Load size and voltage
-
Number of power sources
-
Maintenance access requirements
-
Regulatory obligations
-
Future expansion plans
The right ATS is not just about amperage rating. It is about reliability, serviceability, and long-term compliance.
Frequently Asked Questions
What does an automatic transfer switch do?
An automatic transfer switch monitors utility power and automatically transfers electrical load to a backup generator when an outage occurs. When utility power returns, it switches the load back and shuts down the generator.
What is the difference between an ATS and a manual transfer switch?
An automatic transfer switch operates without human intervention, while a manual transfer switch requires an operator to initiate the transfer. Commercial and industrial facilities typically use ATS systems to avoid delays and reduce risk during outages.
Is an automatic transfer switch required for a generator?
Yes. Electrical codes require a transfer switch for any generator connected to a building to prevent backfeeding. In emergency and standby systems, an automatic transfer switch is often required to meet response-time and safety standards.
What happens if an ATS fails?
If an ATS fails, the generator may start but not transfer power, or the facility may not switch back to utility power. Regular inspection, testing, and maintenance reduce the risk of ATS failure.
Where is an automatic transfer switch installed?
An ATS is usually installed near the main electrical service entrance or within a generator room. Placement depends on system design, code requirements, and accessibility for maintenance.
Why the ATS Is as Important as the Generator
I often remind facility leaders that a generator does nothing until it is told to act. The automatic transfer switch is the brain that makes standby power reliable.
When designed correctly, an ATS ensures safe power transfer, protects personnel, supports compliance, and keeps operations running when the grid fails.
For any organization investing in standby power, understanding how the automatic transfer switch works is not optional. It is foundational.
